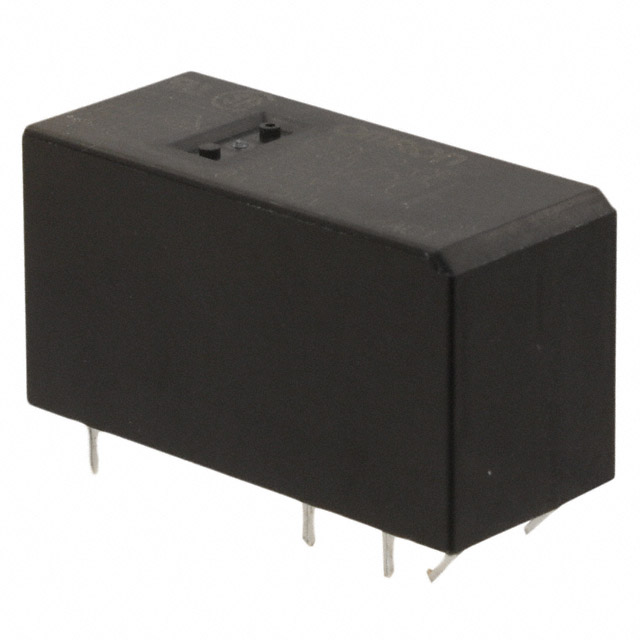

G2RL-2-C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 5V
| Part | Contact Rating (Current) | Contact Material | Must Release Voltage | Coil Resistance | Approval Agency | Coil Type | Mounting Type | Relay Type | Termination Style | Contact Form | Switching Voltage | Coil Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Release Time | Operate Time | Must Operate Voltage | Coil Current | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 8 A | Cadmium Free Silver Alloy | 0.5 VDC | 62.5 Ohms | CQC CSA UR VDE | Non Latching | Through Hole | General Purpose | PC Pin | DPDT (2 Form C) | 300 VDC 440 VAC | Class F | 85 °C | -40 °C | 2400 W 3520 VA | 5 ms | 15 ms | 3.5 VDC | 80 mA | 5 VDC | Sealed - Flux Protection |
