1TL1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

TOGGLE SWITCH, (ON)-OFF-ON, SPDT, NON ILLUMINATED, TL SERIES, 18 A

Part	Actuator Material	Switch Function	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Actuator Type	Illumination	Circuit	Bushing Thread	Actuator Length [x]	Features
Honeywell Sensing and Productivity Solutions 1TL1-5	Nickel Plated	On-Off-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Standard Round	Non-Illuminated	SPDT	15/32-32	17.27 mm
Honeywell Sensing and Productivity Solutions 1TL1-3	Nickel Plated	On-On	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	15 A	Standard Round	Non-Illuminated	SPDT	15/32-32	17.27 mm
Honeywell Sensing and Productivity Solutions 1TL1-1B	Nickel Plated	On-Off-On	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	15 A	Locking Lever	Non-Illuminated	SPDT	15/32-32	26.67 mm

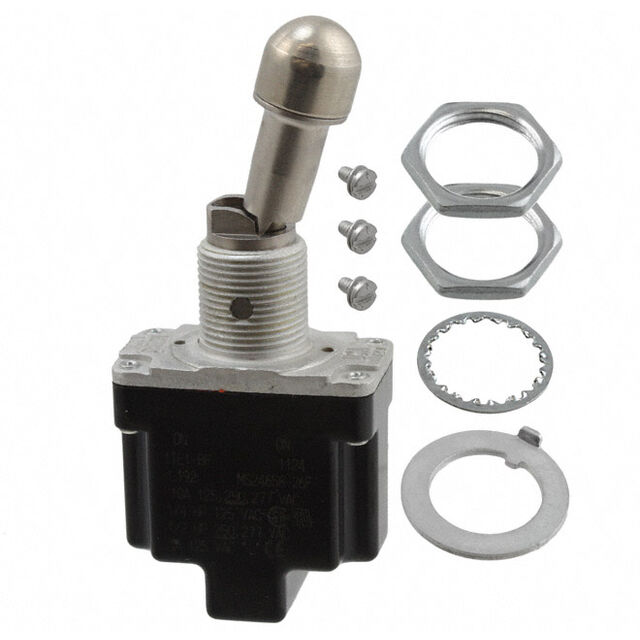

Honeywell Sensing and Productivity Solutions 1TL1-8F	Nickel Plated	On-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Locking Lever	Non-Illuminated	SPDT	15/32-32	26.67 mm
Honeywell Sensing and Productivity Solutions 1TL119-8-A03	Thermoplastic	On-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Flatted	Non-Illuminated	SPDT	15/32-32	29.13 mm	Blue Actuator
Honeywell Sensing and Productivity Solutions 1TL119-7-A02	Thermoplastic	Mom-Off-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Flatted	Non-Illuminated	SPDT	15/32-32	29.13 mm	Black Actuator
Honeywell Sensing and Productivity Solutions 1TL11-82	Nickel Plated	On-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Standard Round	Non-Illuminated	SPDT	15/32-32	17.27 mm

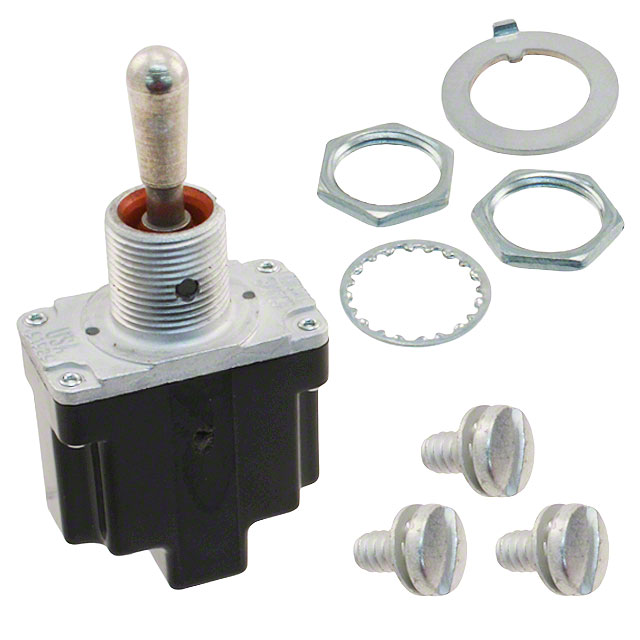

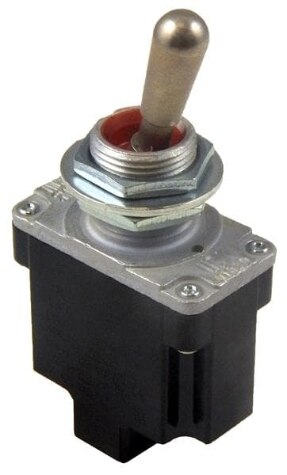

Honeywell Sensing and Productivity Solutions 1TL1-51	Nickel Plated	On-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Standard Round	Non-Illuminated	SPDT	15/32-32	17.27 mm

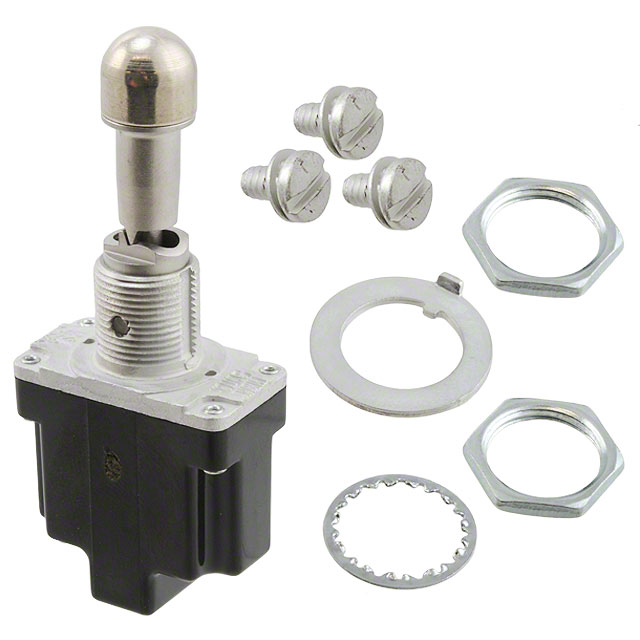

Honeywell Sensing and Productivity Solutions 1TL1-5M	Nickel Plated	On-Off-Mom	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	10 A	Locking Lever	Non-Illuminated	SPDT	15/32-32	26.67 mm

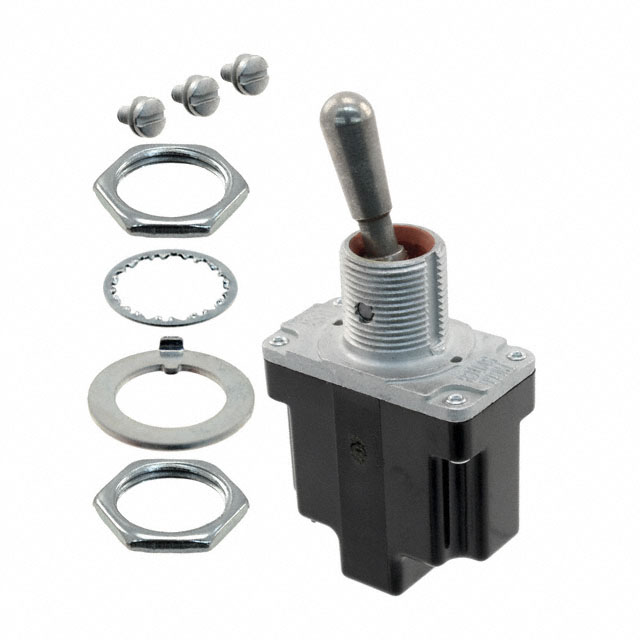

Honeywell Sensing and Productivity Solutions 1TL11-3	Nickel Plated	On-On	Environment Sealed	-65 ░C	71 °C	Screw Terminal	12.4 mm	125 V	Panel Mount	15 A	Standard Round	Non-Illuminated	SPDT	15/32-32	17.27 mm
