5220.1043 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Material Flammability Rating	Mounting Type	Termination	Termination	Termination	Accomodates a Fuse	Approval Agency	Filter Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Fuse Holder, Drawer	Ingress Protection	Connector Style	Current Rating - Filter	Panel Thickness	Panel Thickness [Max]	Panel Thickness [Min]	Current Rating - Appliance Inlet

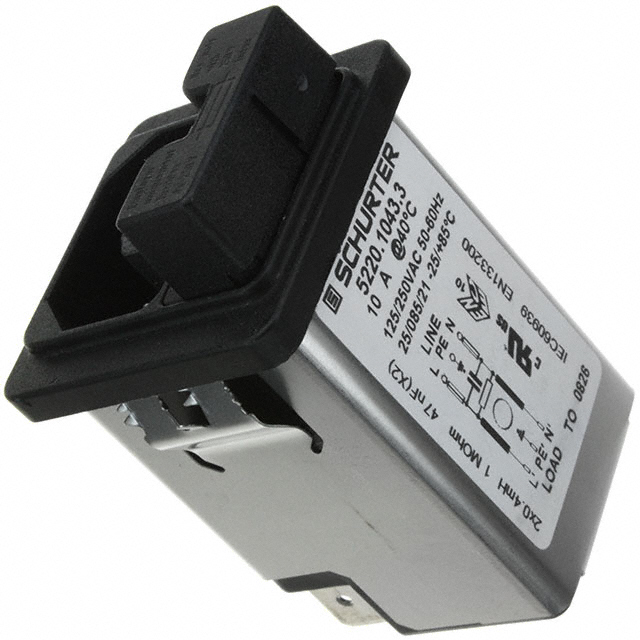

SCHURTER Inc. 5220.1043.3	UL94 V-0	Panel Mount Snap-In	6.3 mm	Quick Connect	0.25 "		cULus ENEC	Filtered (EMI RFI) - Commercial Medical	250 VAC	29 mm	32 mm	Receptacle Male Blades - Module	Fuse Holder	IP40	IEC 320-C14	10 A	0.79 mm 3 mm	0.118 in	0.031 "	10 A
SCHURTER Inc. 5220.1043.1	UL94 V-0	Panel Mount Snap-In	6.3 mm	Quick Connect	0.25 "		cULus ENEC	Filtered (EMI RFI) - Commercial	250 VAC	29 mm	32 mm	Receptacle Male Blades - Module	Fuse Holder	IP40	IEC 320-C14	10 A	0.79 mm 3 mm	0.118 in	0.031 "	10 A
