Q-1U03W0 Series
Manufacturer: Amphenol Custom Cable
Catalog
CBL ASSY SMB-NTYPE PL-JK 19.69"
| Part | 1st Connector Mounting Type | 2nd Connector Mounting Feature | 2nd Connector Mounting Type | Overall Impedance | Length | Length | 1st Connector | 2nd Connector | Cable Type | 2nd Contact Gender | 1st Contact Gender | Features | Color | Frequency - Max [Max] | Style | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

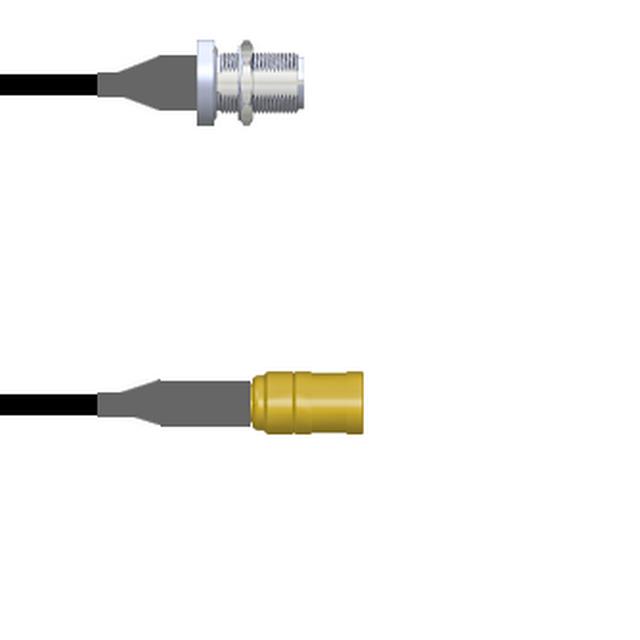

 Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 50 cm | 19.69 " | SMB Plug | N-Type Jack | RG-174 | Female | Female | Shielded | Black | 4 GHz | SMB to N-Type | |

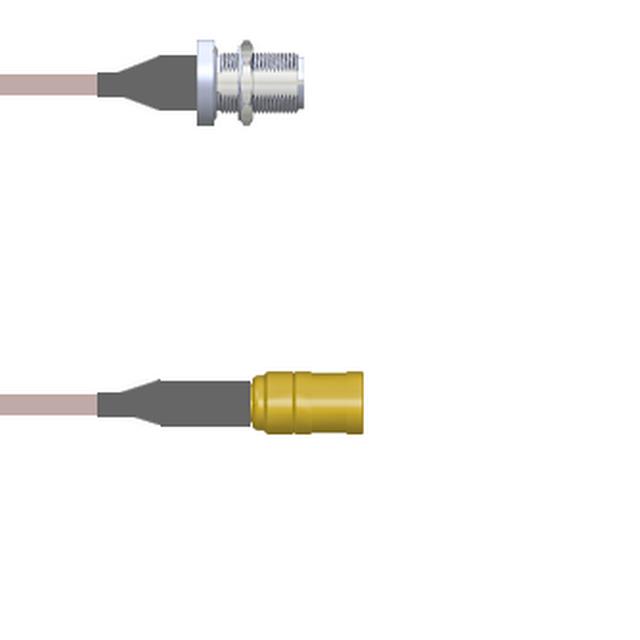

 Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 2.1 m | 84 in | SMB Plug | N-Type Jack | RG-316 | Female | Female | Shielded | Copper | 4 GHz | SMB to N-Type | 7 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 609.6 mm | 24 " | SMB Plug | N-Type Jack | RG-174 | Female | Female | Shielded | Black | 4 GHz | SMB to N-Type | |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 1.5 m | 59.1 in | SMB Plug | N-Type Jack | RG-316 | Female | Female | Shielded | Copper | 4 GHz | SMB to N-Type | 4.9 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 76.2 mm | 3 in | SMB Plug | N-Type Jack | RG-316 | Female | Female | Shielded | Copper | 4 GHz | SMB to N-Type | |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 91.44 cm | 36 in | SMB Plug | N-Type Jack | RG-316 | Female | Female | Shielded | Copper | 4 GHz | SMB to N-Type | |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 91.44 cm | 36 in | SMB Plug | N-Type Jack | RG-174 | Female | Female | Shielded | Black | 4 GHz | SMB to N-Type | |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 2.5 m | 98.4 in | SMB Plug | N-Type Jack | RG-316 | Female | Female | Shielded | Copper | 4 GHz | SMB to N-Type | 8.2 ' |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 2 m | 78.7 in | SMB Plug | N-Type Jack | RG-316 | Female | Female | Shielded | Copper | 4 GHz | SMB to N-Type | 6.6 ft |
Amphenol Custom Cable | Free Hanging (In-Line) | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | 152.4 mm | 6 in | SMB Plug | N-Type Jack | RG-174 | Female | Female | Shielded | Black | 4 GHz | SMB to N-Type |
