092 Series

Catalog

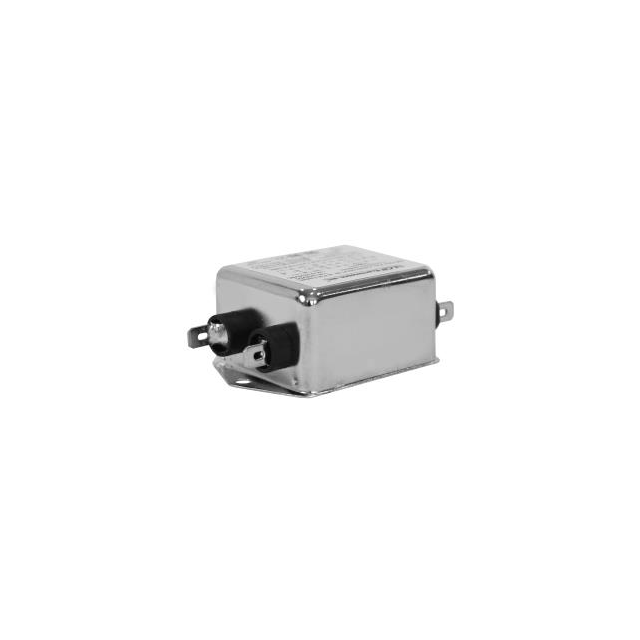

LINE FILTER 250VAC 16A CHASSIS

Part	Voltage - Rated AC (Phase to Phase)	Voltage - Rated AC	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Applications	Mounting Type	Current	Configuration	Filter Type
Astrodyne TDI 092.01623.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	16 A	Two Stage	Single Phase
Astrodyne TDI 092.01023.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	10 A	Two Stage	Single Phase
Astrodyne TDI 092.03021.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	30 A	Two Stage	Single Phase
Astrodyne TDI 092.00823.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	8 A	Two Stage	Single Phase
Astrodyne TDI 092.02023.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	20 A	Two Stage	Single Phase
Astrodyne TDI 092.00423.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	4 A	Two Stage	Single Phase
Astrodyne TDI 092.00721.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	7 A	Two Stage	Single Phase
Astrodyne TDI 092.00321.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	3 A	Two Stage	Single Phase
Astrodyne TDI 092.02021.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	20 A	Two Stage	Single Phase
Astrodyne TDI 092.00121.00	1.45 kV	250 V	Quick Connect	60 Hz	50 Hz	85 °C	-25 °C	CE cURus SEMKO	General Purpose	Chassis Mount	1 A	Two Stage	Single Phase
