CGS TLRS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

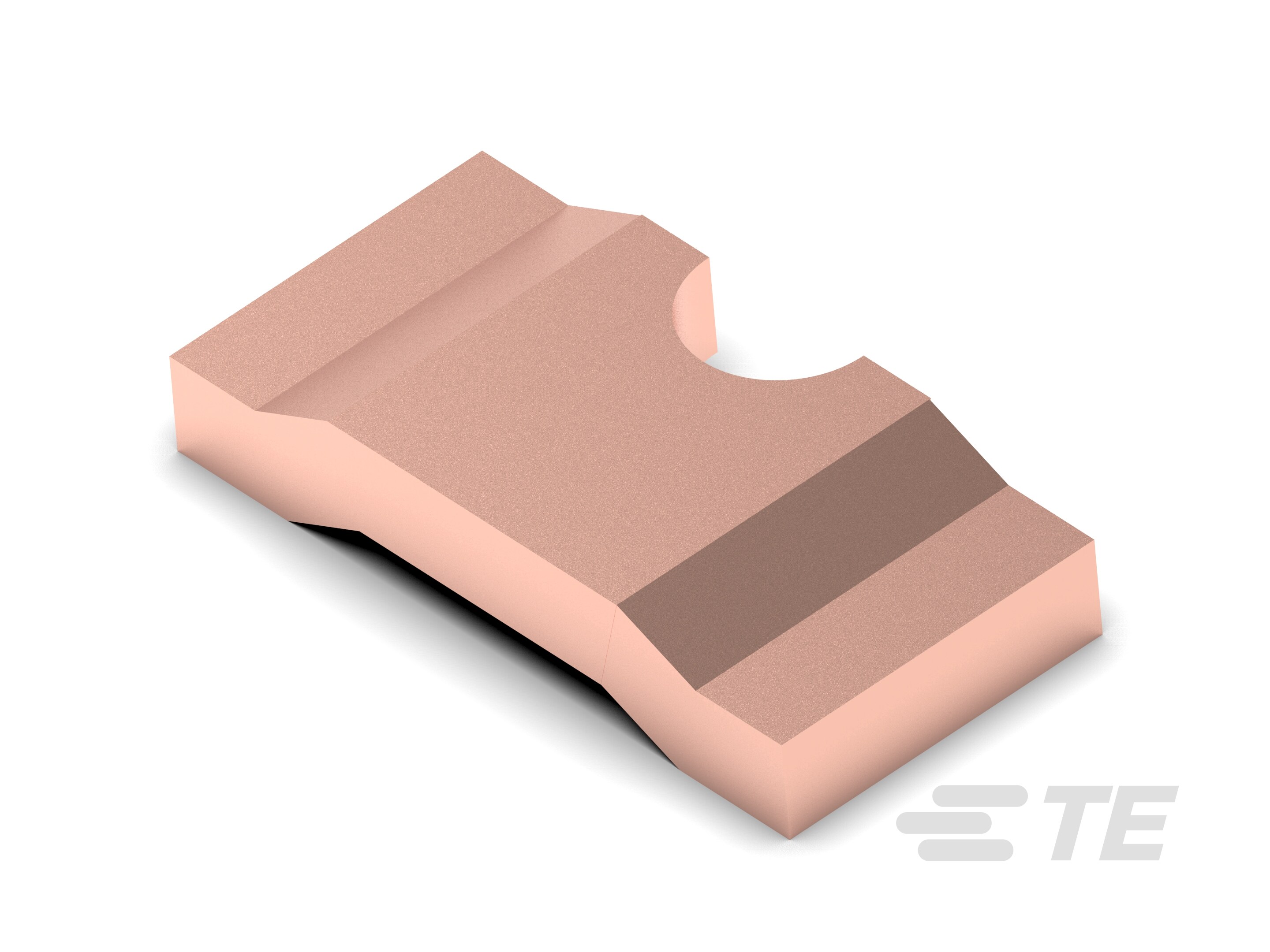

RESISTOR, CURRENT SENSE, 0R0005, 6030 ROHS COMPLIANT: YES

Part	Features	Tolerance	Resistance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Package / Case	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Size / Dimension [y]
TE Connectivity AMP Connectors TLRS157560ER0005FTDG	Current Sense Moisture Resistant	1 %	0.5 mOhms	Metal Element	0.6 mm	0.024 in	1575	5 W	170 °C	-55 C	2	Nonstandard	100 ppm/°C	15.2 mm	7.5 mm	0.295 in	0.598 "
TE Connectivity AMP Connectors TLRS063030DR0009FTDG
TE Connectivity AMP Connectors TLRS157530ER005FTDG
TE Connectivity AMP Connectors TLRS105020ER005FTDG
TE Connectivity AMP Connectors TLRS105040ER002FTDG	Current Sense Moisture Resistant	1 %	2 mOhms	Metal Element	0.69 mm		1050	4 W	170 °C	-55 C	2	Nonstandard	100 ppm/°C	10.5 mm		0.197 "	0.413 in	0.027 in	5 mm
TE Connectivity AMP Connectors TLRS157540ER002FTDG
TE Connectivity AMP Connectors TLRS105030ER003FTDG	Current Sense Moisture Resistant	1 %	3 mOhms	Metal Element	0.47 mm	0.019 in	1050	3 W	170 °C	-55 C	2	Nonstandard	100 ppm/°C	10.5 mm		0.197 "	0.413 in		5 mm
TE Connectivity AMP Connectors TLRS105025ER004FTDG	Current Sense Moisture Resistant	1 %	4 mOhms	Metal Element	0.37 mm	0.015 "	1050	2.5 W	170 °C	-55 C	2	Nonstandard	100 ppm/°C	10.5 mm		0.197 "	0.413 in		5 mm
TE Connectivity AMP Connectors TLRS105040PR001FTDG	Current Sense Moisture Resistant	1 %	1 mOhms	Metal Element	0.47 mm	0.019 in	1050	4 W	170 °C	-55 C	2	Nonstandard	60 ppm/°C	10.5 mm		0.197 "	0.413 in		5 mm
