RXG23 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

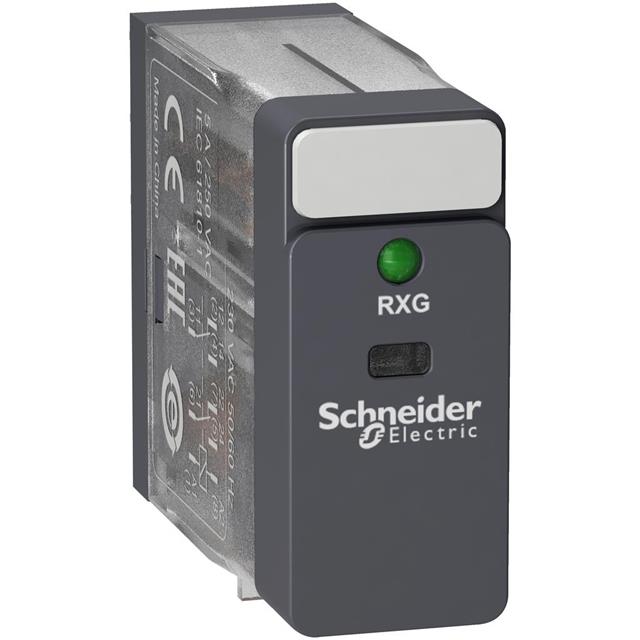

POWER RELAY, DPDT, 48 VAC, 5 A, ZELIO RXG SERIES, SOCKET
| Part | Relay Type | Operate Time | Contact Material | Contact Form | Approval Agency | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Features | Coil Voltage | Coil Type | Must Operate Voltage | Load - Max Switching | Switching Voltage [Max] | Must Release Voltage | Termination Style | Mounting Type | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | General Purpose | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 20 ms | 70 °C | -40 C | Lighted Indicator | 48 VAC | Non Latching | 38.4 VAC | 150 W 1250 VA | 30 VDC 250 VAC | 14.4 VAC | Plug In | Socketable | 5 A |
 SCHNEIDER ELECTRIC | General Purpose | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 20 ms | 70 °C | -40 C | Lighted Indicator | 24 VAC | Non Latching | 19.2 VAC | 150 W 1250 VA | 30 VDC 250 VAC | 7.2 VAC | Plug In | Socketable | 5 A |
SCHNEIDER ELECTRIC | General Purpose | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 20 ms | 70 °C | -40 C | Lighted Indicator | 230 VAC | Non Latching | 184 VAC | 150 W 1250 VA | 30 VDC 250 VAC | 69 VAC | Plug In | Socketable | 5 A |
SCHNEIDER ELECTRIC | General Purpose | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | DPDT (2 Form C) | CE CSA DNV-GL EAC UL | 20 ms | 70 °C | -40 C | Lighted Indicator | 24 VDC | Non Latching | 150 W 1250 VA | 30 VDC 250 VAC | 2.4 VDC | Plug In | Socketable | 5 A |
