202K163 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

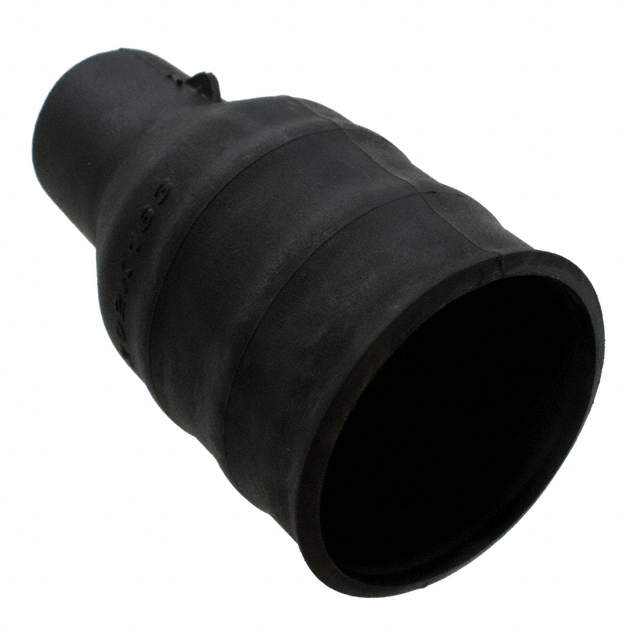

HEATSHRINK BOOT SZ63 BLACK

Part	Material	Small Recovered Length	Small Recovered Length	Total Length Recovered	Total Length Recovered	Small Diameter Supplied	Small Diameter Supplied	Large Recovered Length	Large Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Features	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Color	Shell Size - Insert	Type	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Recovered Length [x]
TE Connectivity Aerospace, Defense and Marine 202K163-25-G42/225-0	Elastomer Semi-Rigid	20.07 mm	0.79 in	1.69 in	42.93 mm	1.69 "	42.93 mm	20.07 mm	0.79 in	28.19 mm	1.11 in	Adhesive Coating Fluid Resistant Lip	42.93 mm	1.69 in	28.19 mm	1.11 "	Black	63	Boot
TE Connectivity Aerospace, Defense and Marine 202K163-100/86-0	Polyolefin (PO) Semi-Flexible Halogen Free	29.97 mm	1.18 in	3.898 in	99.01 mm			61.01 mm	2.402 in	28.19 mm	1.11 in	Adhesive Coating Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot	24.99 mm	0.984 in
TE Connectivity Aerospace, Defense and Marine 202K163-25-01/86-0	Elastomer Semi-Rigid	21.08 mm		3.11 in	78.99 mm	1.69 "	42.93 mm	40.89 mm	1.61 in	28.19 mm	1.11 in	Adhesive Coating Fluid Resistant Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot			0.83 in
TE Connectivity Aerospace, Defense and Marine 202K163-3/180-0	Polyolefin (PO) Semi-Rigid	29.97 mm	1.18 in	3.898 in	99.01 mm	1.69 "	42.93 mm	61.01 mm	2.402 in	28.19 mm	1.11 in	Adhesive Coating Flame Retardant Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot
TE Connectivity Aerospace, Defense and Marine 202K163-12-01/225-0	Fluoroelastomer (FKM) Flexible	21.08 mm		3.11 in	78.99 mm	1.69 "	42.93 mm	40.89 mm	1.61 in	28.19 mm	1.11 in	Adhesive Coating Chemical Resistant Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot			0.83 in
TE Connectivity Aerospace, Defense and Marine 202K163-12-00-0	Fluoroelastomer (FKM) Flexible	29.97 mm	1.18 in	3.898 in	99.01 mm			61.01 mm	2.402 in	28.19 mm	1.11 in	Chemical Resistant Lip Potting (Injection) Port	42.01 mm	1.654 in	9.91 mm	0.39 "	Black	63	Boot	21.08 mm	0.83 in
TE Connectivity Aerospace, Defense and Marine 202K163-100/180-0	Polyolefin (PO) Semi-Flexible Halogen Free	29.97 mm	1.18 in	3.898 in	99.01 mm			61.01 mm	2.402 in	28.19 mm	1.11 in	Adhesive Coating Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot	24.99 mm	0.984 in
TE Connectivity Aerospace, Defense and Marine 202K163-25-02/225-CS-1858	Elastomer Semi-Rigid	21.08 mm		2.323 in	59 mm	1.69 "	42.93 mm	21.08 mm	0.83 in	28.19 mm	1.11 in	Adhesive Coating Eyelet Clip Fluid Resistant Lip	42.93 mm	1.69 in	9.91 mm	0.39 "		63	Boot			0.83 in
TE Connectivity Aerospace, Defense and Marine 202K163-25-01/225-0	Elastomer Semi-Rigid	21.08 mm		3.11 in	78.99 mm	1.69 "	42.93 mm	40.89 mm	1.61 in	28.19 mm	1.11 in	Adhesive Coating Fluid Resistant Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot			0.83 in
TE Connectivity Aerospace, Defense and Marine 202K163-25-0-CS8742	Elastomer Semi-Rigid	29.97 mm	1.18 in	3.898 in	99.01 mm	1.69 "	42.93 mm	61.01 mm	2.402 in	28.19 mm	1.11 in	Fluid Resistant Lip	42.93 mm	1.69 in	9.91 mm	0.39 "	Black	63	Boot
