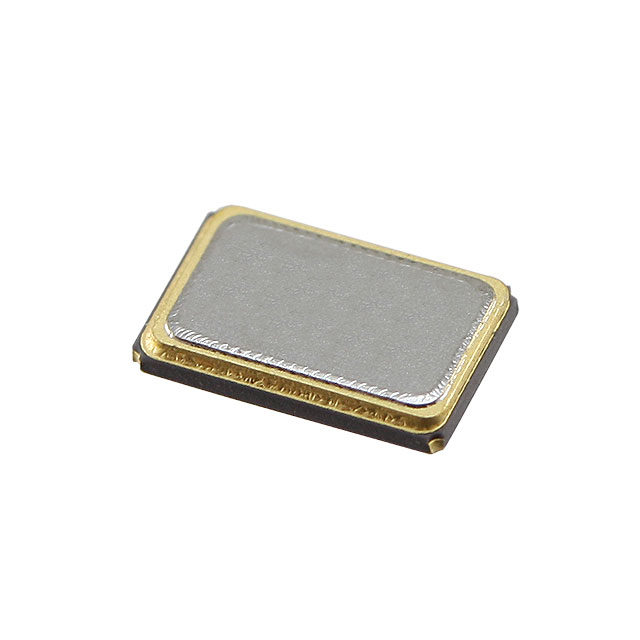

ECX-53B Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 20.000MHZ 8PF 10PPM -20C +70C

Part	Frequency Stability	Load Capacitance	Frequency	Mounting Type	Package / Case	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Mode
ECS Inc. ECS-200-8-30B-CKM	10 ppm	8 pF	20 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	40 Ohms	10 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-270-10-30B-CKM-TR	10 ppm	10 pF	27 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	30 Ohm	10 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-320-10-30B-CKM-TR	10 ppm	10 pF	32 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	30 Ohm	10 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-135.60-10-30B-CKM-TR	10 ppm	10 pF	13.56 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	80 Ohm	10 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-270-20-30B-TR	50 ppm	20 pF	27 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	30 Ohm	30 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-250-16-30B	50 ppm	16 pF	25 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	30 Ohm	30 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-160-10-30B-CKL-TR	10 ppm	10 pF	16 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-10 °C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	50 Ohms	10 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-135.6-8-30B-CKM	10 ppm	8 pF	13.56 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	80 Ohm	10 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-160-8-30B-RWY-TR	15 ppm	8 pF	16 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-30 ░C	85 °C	3.2 mm	0.126 in	5 mm	0.197 in	50 Ohms	15 ppm	0.033 in	0.85 mm	Fundamental
ECS Inc. ECS-250-13-30B-AEM-TR	50 ppm	13 pF	25 MHz	Surface Mount	4-SMD No Lead	MHz Crystal	-20 ░C	70 °C	3.2 mm	0.126 in	5 mm	0.197 in	30 Ohm	25 ppm	0.033 in	0.85 mm	Fundamental
