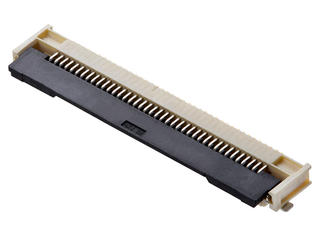

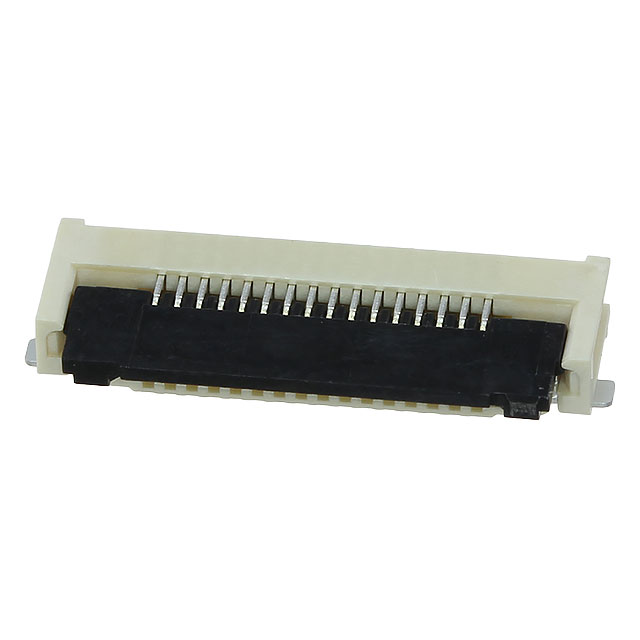

Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 23 Circuits, Gold over Nickel Plating
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 23 Circuits, Gold over Nickel Plating
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 23 Circuits, Gold over Nickel Plating
| Part | Housing Color | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness | Actuator Color | Current Rating (Amps) | Actuator Material | Cable End Type | Mounting Type | FFC, FCB Thickness | Connector/Contact Type | Contact Material | Voltage Rating | Contact Finish | Material Flammability Rating | Locking Feature | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Flat Flex Type | Termination | Number of Positions | Height Above Board [z] | Height Above Board [z] | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Beige | 20 | 1.97 Áin | 0.05 Ám | Black | 0.5 A | Glass Filled Nylon Polyamide (PA) | Straight Tabbed | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 54 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |

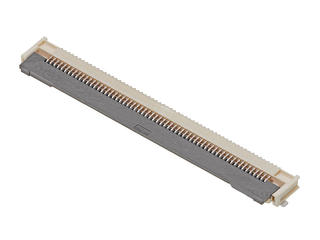

 Molex | Glass Filled Nylon Polyamide (PA) | Tabbed Tapered | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 60 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) | ||||||
Molex | Glass Filled Nylon Polyamide (PA) | Straight Tabbed | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 58 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) | ||||||
 Molex | Glass Filled Nylon Polyamide (PA) | Straight Tabbed | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 36 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) | ||||||
 Molex | Glass Filled Nylon Polyamide (PA) | Straight Tabbed | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 38 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) | ||||||
 Molex | Beige | 25 | 1.97 Áin | 0.05 Ám | Black | 500 mA | Glass Filled Nylon Polyamide (PA) | Tabbed Tapered | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 125 °C | FFC FPC | Solder | 80 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |
 Molex | Glass Filled Nylon Polyamide (PA) | Straight Tabbed | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 48 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) | ||||||
 Molex | Beige | 25 | 1.97 Áin | 0.05 Ám | Black | 0.5 A | Glass Filled Nylon Polyamide (PA) | Tabbed Tapered | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 70 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |
 Molex | Beige | 25 | 1.97 Áin | 0.05 Ám | Black | 0.5 A | Glass Filled Nylon Polyamide (PA) | Tabbed Tapered | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 35 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |
 Molex | Beige | 25 | 1.97 Áin | 0.05 Ám | Black | 0.5 A | Glass Filled Nylon Polyamide (PA) | Tabbed Tapered | Right Angle Surface Mount | 0.3 mm | Contacts Bottom | Phosphor Bronze | 50 V | Gold | UL94 V-0 | Flip Lock | 0.02 " | 0.5 mm | -40 C | 105 ░C | FFC FPC | Solder | 45 | 1.9 mm | 0.075 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) |
