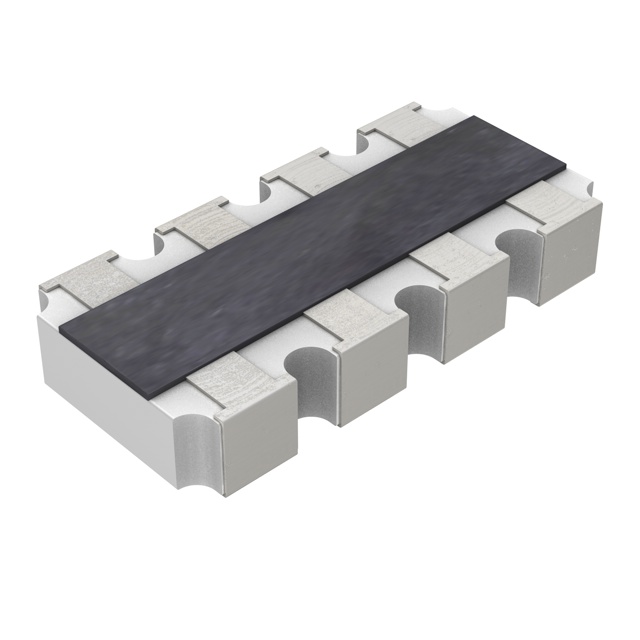

YC164-JR Series
Manufacturer: YAGEO
Beta
⌘K
RES ARRAY 4 RES 91 OHM 1206
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Qualification | Tolerance | Grade | Power Per Element | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Applications | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Circuit Type | Number of Pins | Number of Resistors | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 91 Ohms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 56 kOhms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 200 Ohms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 3 kOhms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 3.3 Ohms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 180 Ohms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 220 kOhms | |
 YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 220 Ohms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 1.3 kOhms | |
YAGEO | 155 C | -55 C | 200 ppm/°C | AEC-Q200 | 5 % | Automotive | 62.5 mW | Surface Mount | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | DDRAM SDRAM | 0.7 mm | 0.028 " | 1206 (3216 Metric) Convex Long Side Terminals | Isolated | 8 | 4 | 75 Ohms |
