717-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 30POS 0.156

Part	Material - Insulation	Termination Rows	Card Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Number of Rows	Contact Material	Read Out	Gender	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Contact Type	Termination Rows [custom]	Number of Rows [custom]

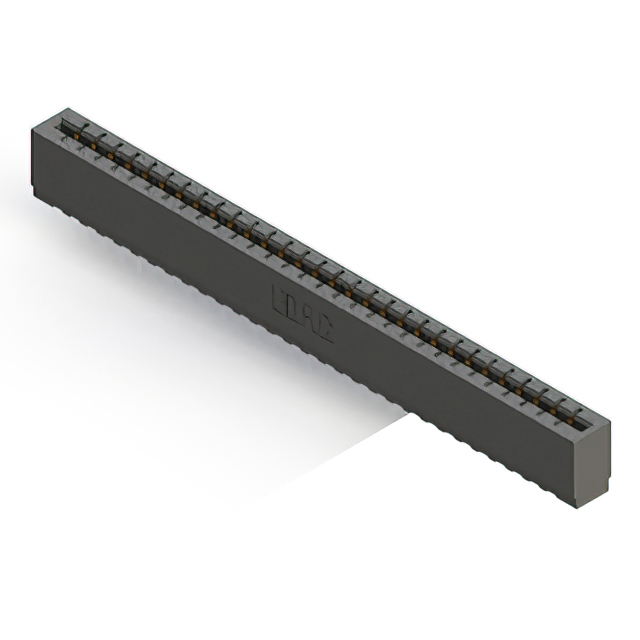

EDAC Inc. 717-030-525-101	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	Copper Alloy	Single	Female	Press-Fit	30	30 Áin	0.76 Ám	Black	Through Hole	3.96 mm	0.156 in	-40 C	105 ░C	30	Cantilever
EDAC Inc. 717-030-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	Copper Alloy	Single	Female	Press-Fit Wire Wrap	30	30 Áin	0.76 Ám	Black	Through Hole	3.96 mm	0.156 in	-40 C	105 ░C	30	Cantilever
EDAC Inc. 717-030-525-201	Polyester Thermoplastic		Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold		Copper Alloy	Dual	Female	Press-Fit	30	30 Áin	0.76 Ám	Black	Through Hole	3.96 mm	0.156 in	-40 C	105 ░C	15	Cantilever	2	2

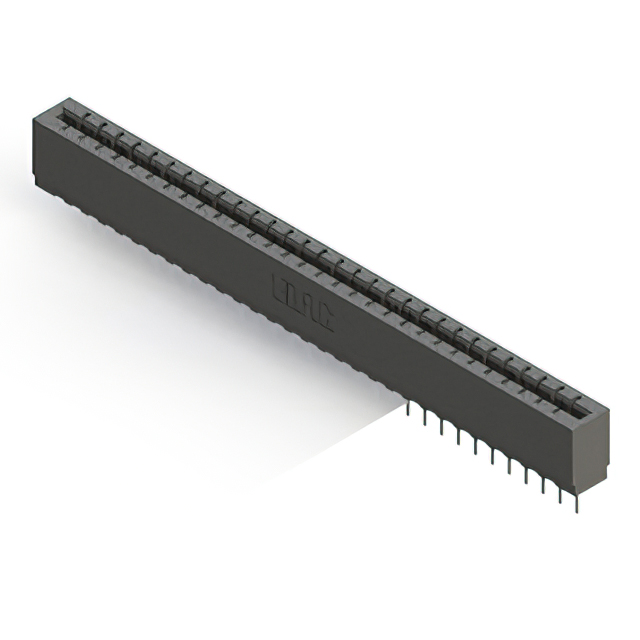

EDAC Inc. 717-030-522-101	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	Copper Alloy	Single	Female	Press-Fit	30	30 Áin	0.76 Ám	Black	Through Hole	3.96 mm	0.156 in	-40 C	105 ░C	30	Cantilever

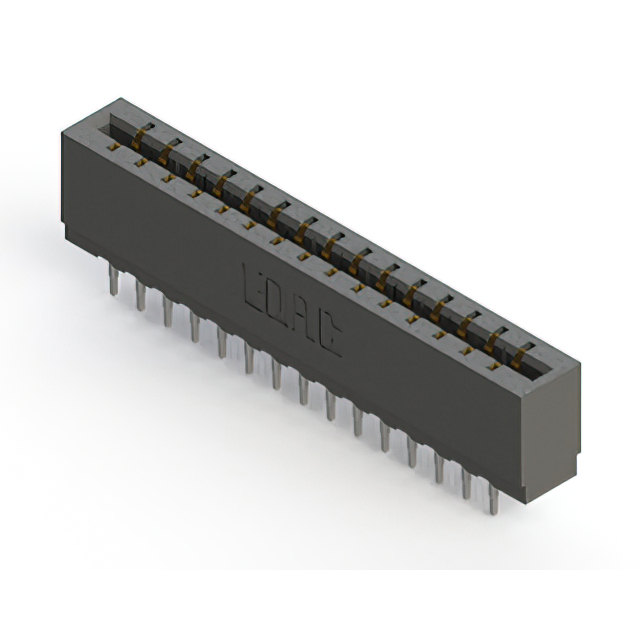

EDAC Inc. 717-030-560-201	Polyester Thermoplastic		Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold		Copper Alloy	Dual	Female	Press-Fit	30	30 Áin	0.76 Ám	Black	Through Hole	3.96 mm	0.156 in	-40 C	105 ░C	15	Cantilever Make Before Break	2	2
EDAC Inc. 717-030-545-101	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	1	Copper Alloy	Single	Female	Press-Fit Wire Wrap	30	30 Áin	0.76 Ám	Black	Through Hole	3.96 mm	0.156 in	-40 C	105 ░C	30	Cantilever
