9GT0812 Series

Catalog

FAN AXIAL 80X25.2MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Material - Blade	Noise	Voltage - Rated	Bearing Type	Approval Agency	Termination	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Static Pressure	Static Pressure	Air Flow	Width [x]	RPM	Fan Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features

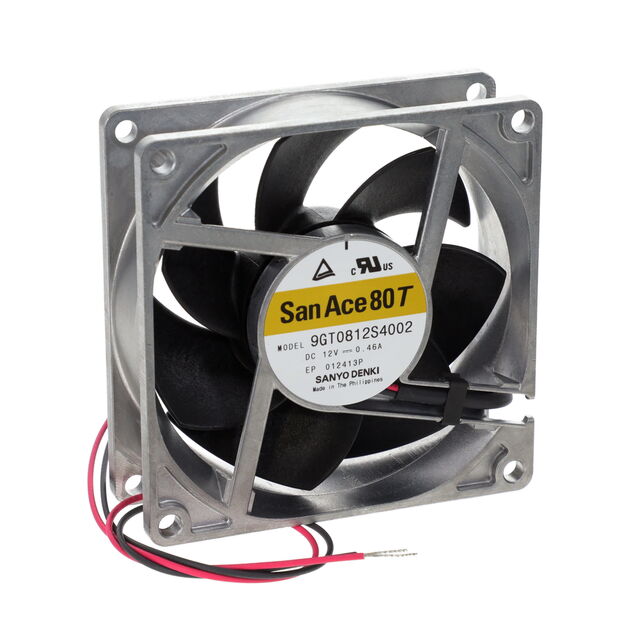

Sanyo Denki America Inc. 9GT0812S4002	10.2 VDC	13.8 VDC	1.84 m³/min	65.7 CFM	40000 Hrs	Aluminum	460 mA	Plastic	46 dB(A)	12 VDC	Ball	CSA TUV UL	2 Wire Leads	80 mm	80 mm	130.18 g	0.287 lb	142 Pa	0.57 in H2O	65.7 CFM	25.2 mm	6700 RPM	Tubeaxial	5.52 W	-40 C	85 °C
Sanyo Denki America Inc. 9GT0812S4001	10.2 VDC	13.8 VDC	1.84 m³/min		40000 Hrs	Aluminum	460 mA	Plastic	46 dB(A)	12 VDC	Ball	CSA TUV UL	3 Wire Leads	80 mm	80 mm	130.18 g	0.287 lb	142 Pa	0.57 in H2O	65.7 CFM	25.2 mm	6700 RPM	Tubeaxial	5.52 W	-40 C	85 °C	Locked Rotor Protection Speed Sensor (Tach)
