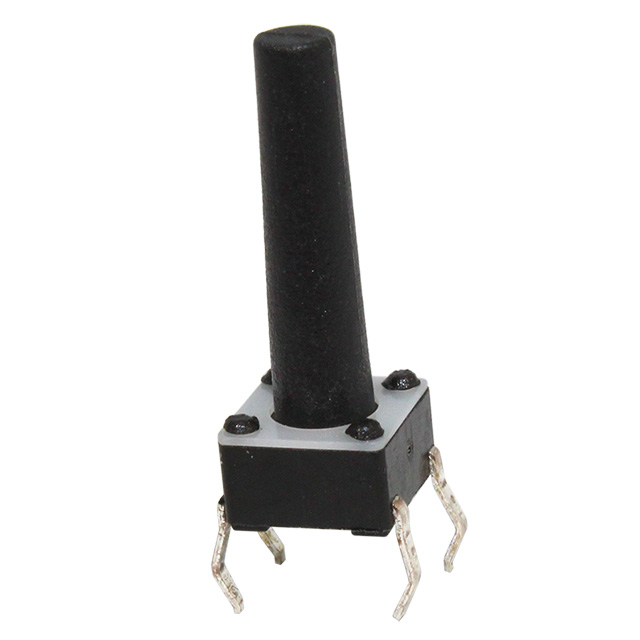

CT110217 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Actuator Type	Mounting Type	Operating Force	Outline [x]	Outline [y]	Circuit	Illumination	Termination Style	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Orientation
CIT Relay and Switch CT110217.0F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Plunger for Cap	Through Hole	260 gf	6 mm	6 mm	SPST-NO	Non-Illuminated	PC Pin	0.05 A 50 VDC	17 mm	85 °C	-40 C	Off-Mom	Top Actuated

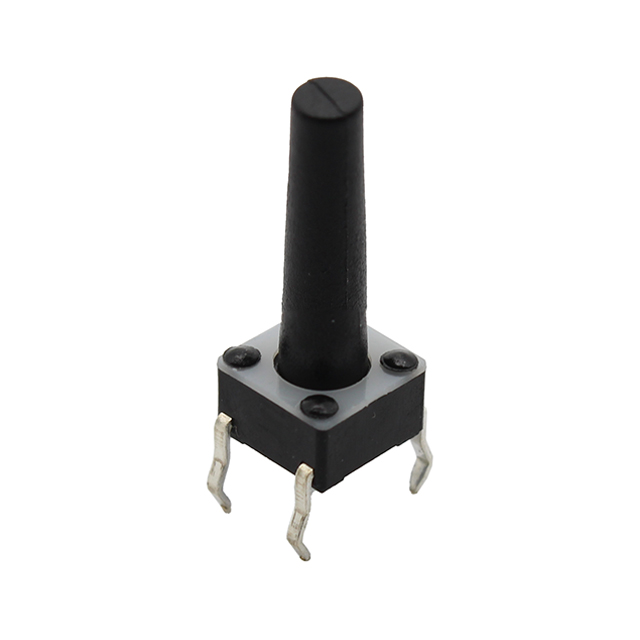

CIT Relay and Switch CT110217.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Standard	Through Hole	160 gf	6 mm	6 mm	SPST-NO	Non-Illuminated	PC Pin	0.05 A 50 VDC	17 mm	85 °C	-40 C	Off-Mom	Top Actuated
