ADS5120 Series
Manufacturer: Texas Instruments
Beta
⌘K

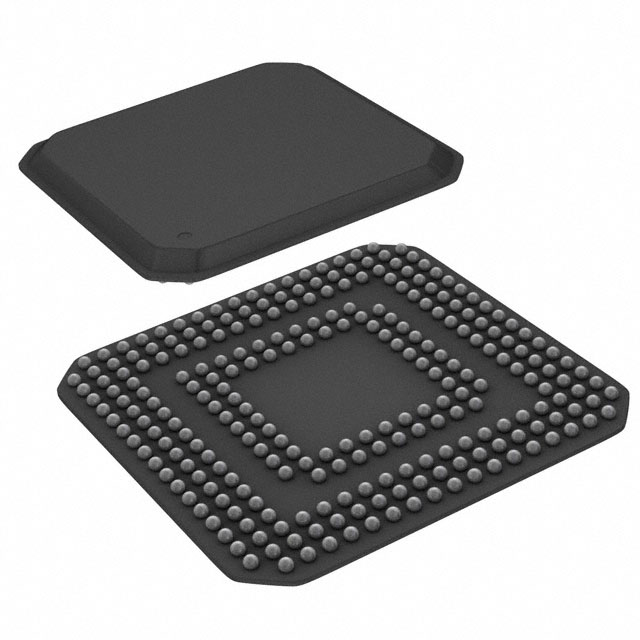

8-CHANNEL OCTAL ADC PIPELINED 40MSPS 10-BIT PARALLEL 257-PIN BGA MICROSTAR TRAY
| Part | Reference Type | Sampling Rate (Per Second) | Supplier Device Package | Features | Operating Temperature [Max] | Operating Temperature [Min] | Architecture | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Mounting Type | Data Interface | Number of A/D Converters | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Configuration | Package / Case | Number of Bits [custom] | Input Type | Number of Inputs | Ratio - S/H:ADC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | External Internal | 40M | 257-BGA MICROSTAR (16x16) | Simultaneous Sampling | 70 °C | 0 °C | Pipelined | 2 V | 1.65 V | Surface Mount | Parallel | 8 | 2 V | 1.65 V | S/H-ADC | 257-LFBGA | 10 | Differential Single Ended | 8 | 1:1 |
 Texas Instruments | External Internal | 40M | 257-BGA MICROSTAR (16x16) | Simultaneous Sampling | 70 °C | 0 °C | Pipelined | 2 V | 1.65 V | Surface Mount | Parallel | 8 | 2 V | 1.65 V | S/H-ADC | 257-LFBGA | 10 | Differential Single Ended | 8 | 1:1 |
