RVS1.25 Series

Catalog

RING TERMINALS, PVC INSULATED, 1

Part	Material - Insulation	Thickness	Thickness	Stud/Tab Size	Contact Material	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Mounting Type	Termination	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Length - Overall

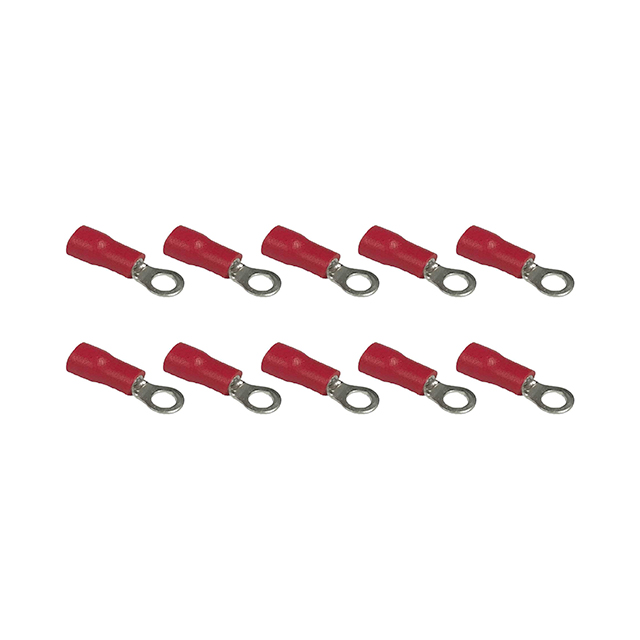

Remington Industries RVS1.25-3.5-10	Poly-Vinyl Chloride (PVC)	0.76 mm	0.03 in	6 Stud	Copper	Insulated	5.5 mm	0.217 in	Circular	Free Hanging (In-Line)	Crimp	0.689 in	17.5 mm	16 AWG	22 AWG	Tin	Red
Remington Industries RVS1.25-5-100	Poly-Vinyl Chloride (PVC)	0.76 mm	0.03 in	10 Stud	Copper	Insulated			Circular	Free Hanging (In-Line)	Crimp			16 AWG	22 AWG	Tin	Red	8 mm	0.315 in	20.8 mm	0.819 "
Remington Industries RVS1.25-4-10	Poly-Vinyl Chloride (PVC)	0.76 mm	0.03 in	8 Stud	Copper	Insulated	6.6 mm	0.26 in	Circular	Free Hanging (In-Line)	Crimp	0.764 in	19.41 mm	16 AWG	22 AWG	Tin	Red

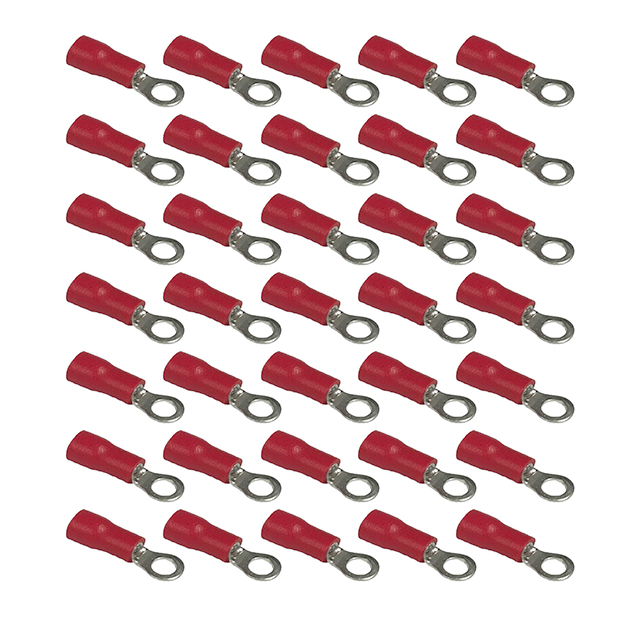

Remington Industries RVS1.25-4-100	Poly-Vinyl Chloride (PVC)	0.76 mm	0.03 in	8 Stud	Copper	Insulated	6.6 mm	0.26 in	Circular	Free Hanging (In-Line)	Crimp	0.764 in	19.41 mm	16 AWG	22 AWG	Tin	Red
Remington Industries RVS1.25-5-10	Poly-Vinyl Chloride (PVC)	0.76 mm	0.03 in	10 Stud	Copper	Insulated			Circular	Free Hanging (In-Line)	Crimp			16 AWG	22 AWG	Tin	Red	8 mm	0.315 in	20.8 mm	0.819 "
Remington Industries RVS1.25-3.5-100	Poly-Vinyl Chloride (PVC)	0.76 mm	0.03 in	6 Stud	Copper	Insulated	5.5 mm	0.217 in	Circular	Free Hanging (In-Line)	Crimp	0.689 in	17.5 mm	16 AWG	22 AWG	Tin	Red
