662-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

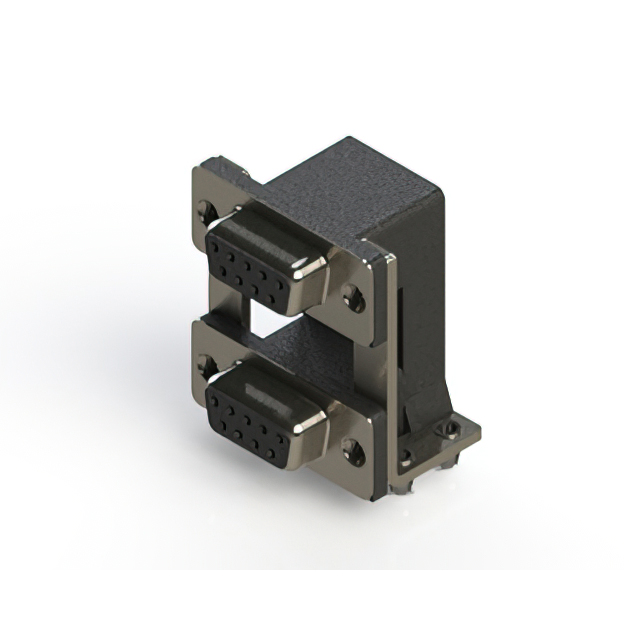

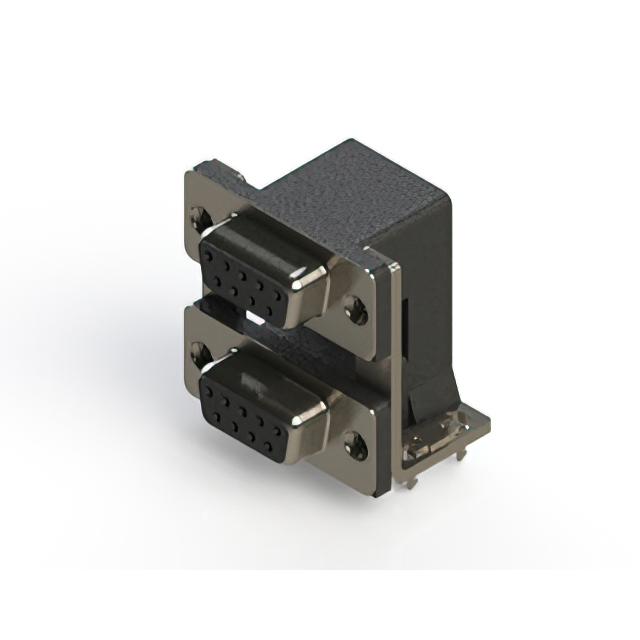

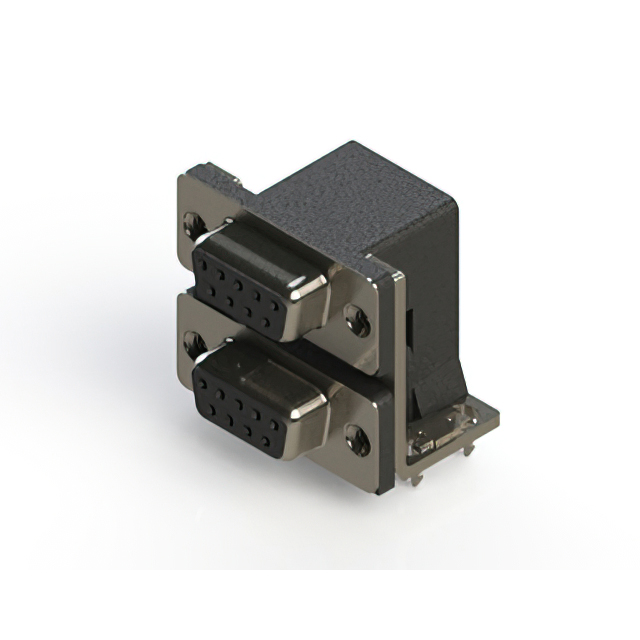

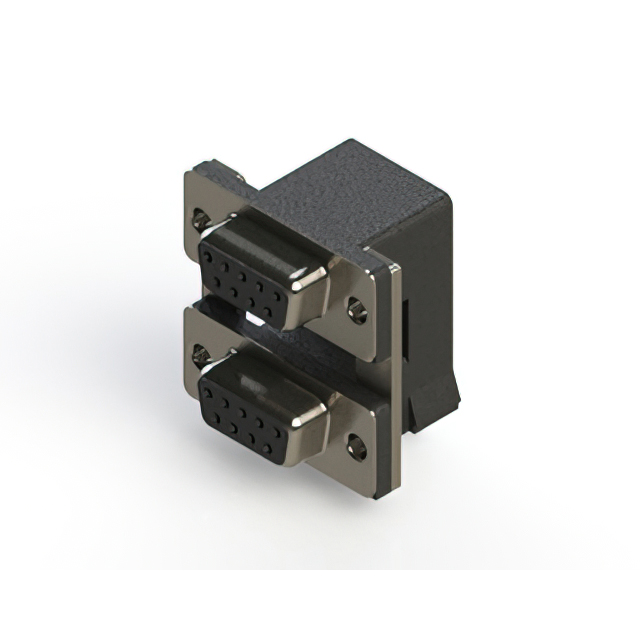

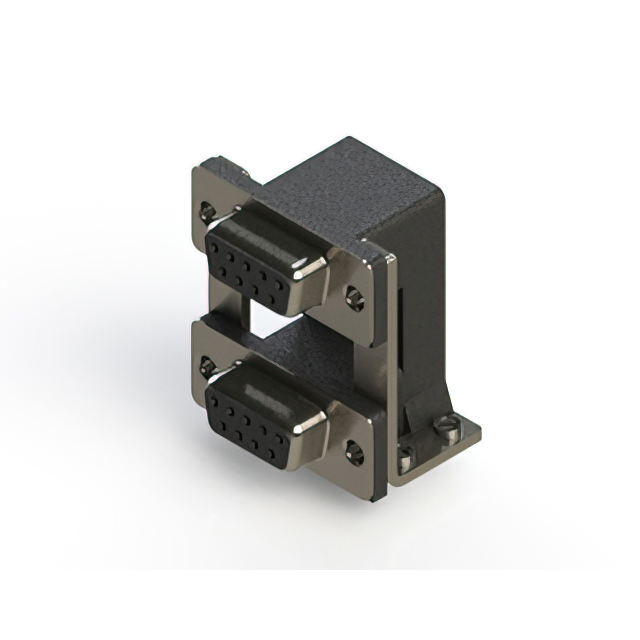

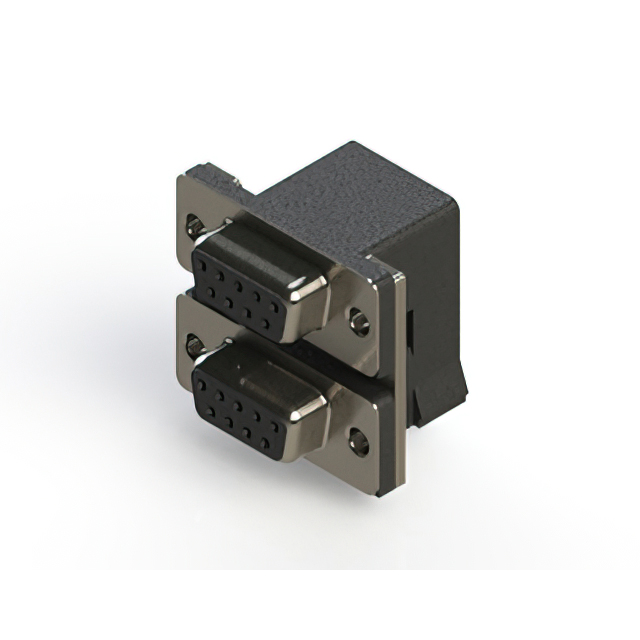

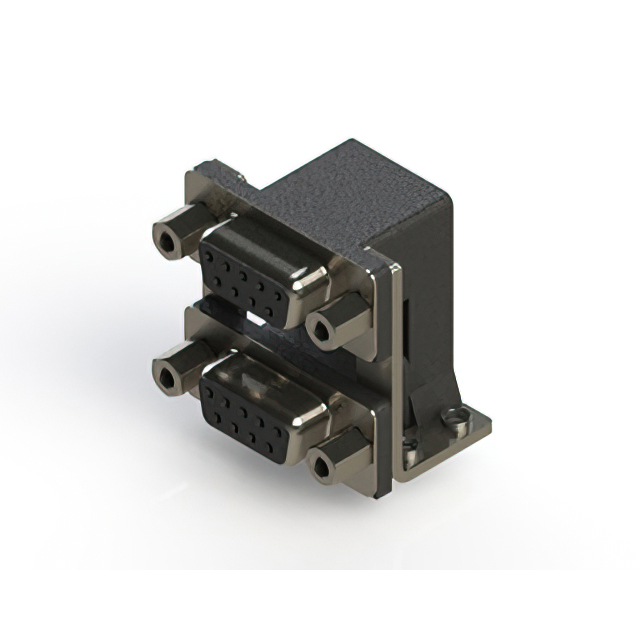

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Flange Feature | Features | Termination | Connector Style | Backset Spacing | Backset Spacing | Connector Type | Number of Positions | Mounting Type | Material Flammability Rating | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shell Material, Finish | Number of Rows [custom] | Contact Type | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell (Unthreaded) | Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 30 Áin | 0.76 Ám | Gold | Nickel Plated Steel | 2 | Signal | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell (Unthreaded) | Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | Nickel Plated Steel | 2 | Signal | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | 4-40 Mating Side Female Screwlock | Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | Gold | Nickel Plated Steel | 2 | Signal | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell | Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | Nickel Plated Steel | 2 | Signal | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell (M3) | Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | Gold | Nickel Plated Steel | 2 | Signal | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | 4-40 Mating Side Female Screwlock | Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | Nickel Plated Steel | 2 | Signal | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell | Board Lock Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | Gold | Nickel Plated Steel | 2 | Signal | Flash | 4-40 | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell | Board Lock Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | Nickel Plated Steel | 2 | Signal | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell | Board Lock Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | Nickel Plated Steel | 2 | Signal | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | 3 A | Housing/Shell (Unthreaded) | Board Lock Mounting Brackets Shielded | Solder | D-Sub - Stacked | 8.08 mm | 0.318 " | Receptacle Female Sockets | 9 | Right Angle Through Hole | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | Nickel Plated Steel | 2 | Signal |
