431101 Series

Catalog

CONN BARRIER STRP 14CIRC 0.438"

Part	Material - Insulation	Material Flammability Rating	Mounting Type	Operating Temperature	Barrier Type	Number of Wire Entries	Terminal Block Type	Pitch [x]	Pitch [x]	Top Termination	Current Rating (Amps)	Voltage Rating	Number of Circuits	Number of Rows	Bottom Termination	Wire Gauge [Max]	Wire Gauge [Min]
Curtis Industries 431101-14-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	14	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	14	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-15-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	15	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	15	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-22-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	22	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	22	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-11-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	11	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	11	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-21-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	21	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	21	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-25-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	25	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	25	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-08-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	8	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	8	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-01-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	1	Barrier Block			Screws	20 A	600 V	1	1	PC Pin	22 AWG	12 AWG
Curtis Industries 431101-17-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	17	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	17	1	PC Pin	22 AWG	12 AWG

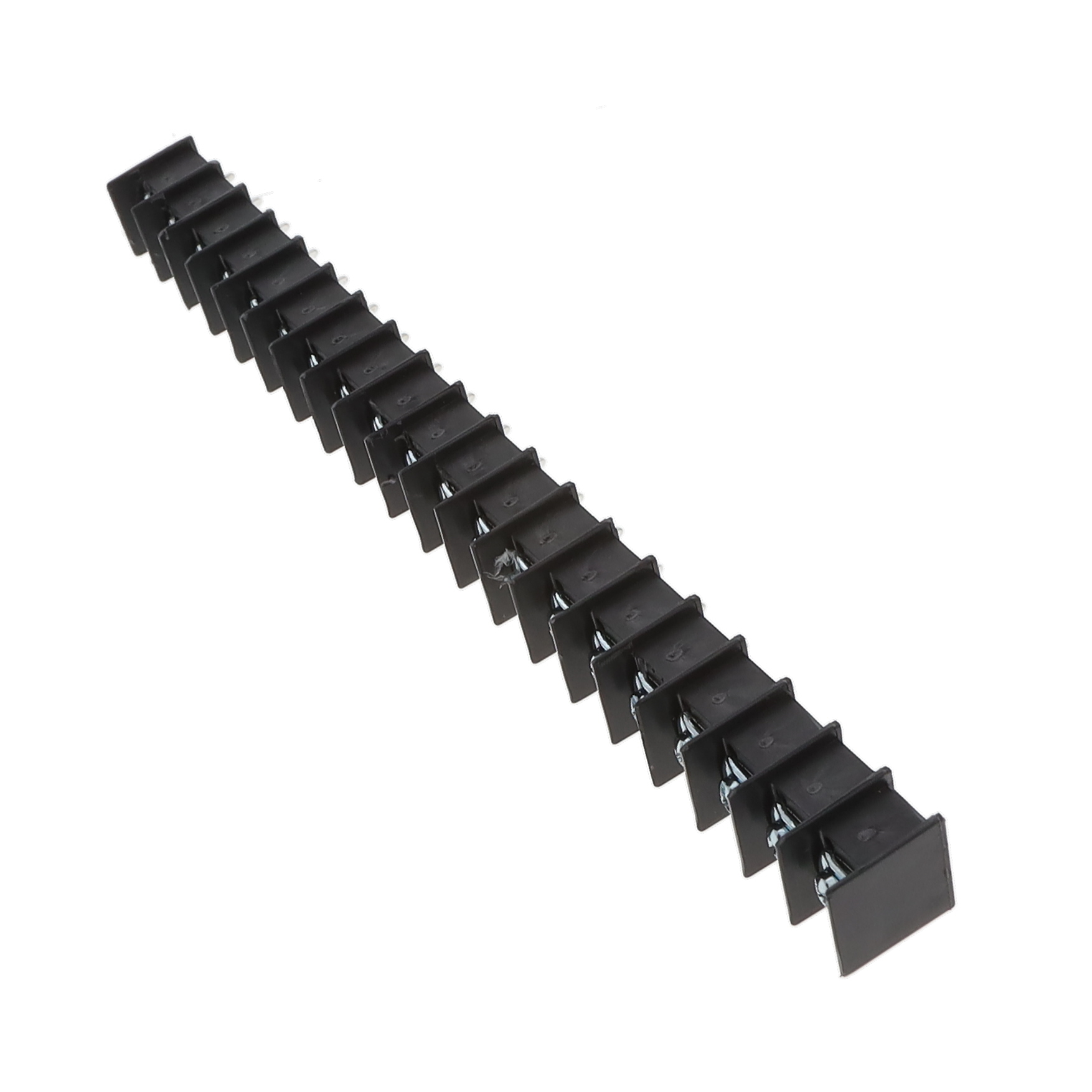

Curtis Industries 431101-20-0	Polypropylene (PP)	UL94 V-0	Through Hole	105 C	2 Wall (Dual)	20	Barrier Block	0.438 in	11.12 mm	Screws	20 A	600 V	20	1	PC Pin	22 AWG	12 AWG
