PBC14 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Fastening Type	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shrouding	Current Rating (Amps)	Insulation Color	Style	Number of Positions Loaded	Number of Rows	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PBC14SFAN	2.54 µm	100 µin	14	Push-Pull	0.1 in	2.54 mm	Male Pin	3.05 mm	0.12 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	8.08 mm	0.318 in	0.1 "	2.54 mm	Square	Phosphor Bronze	13.67 mm	0.538 in	Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All	1

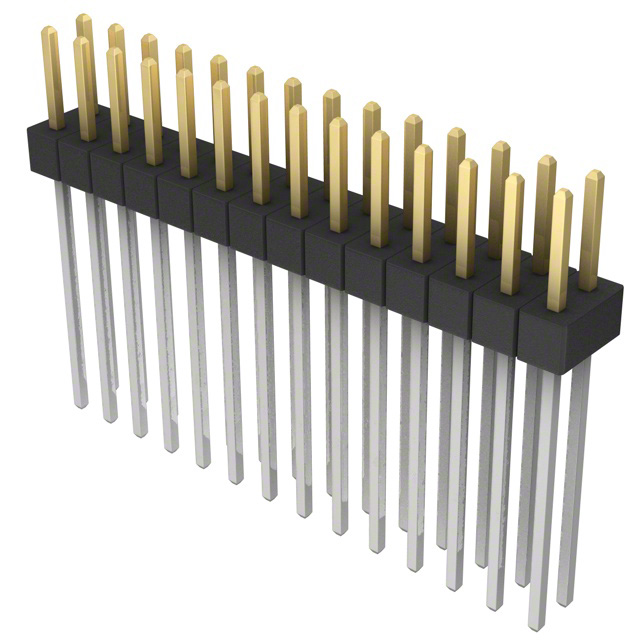

Sullins Connector Solutions PBC14DAFN	2.54 µm	100 µin	28	Push-Pull	0.1 in	2.54 mm	Male Pin			Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All		15.75 mm	0.62 "	2	0.1 in	2.54 mm	0.95 in	24.13 mm
Sullins Connector Solutions PBC14SADN	2.54 µm	100 µin	14	Push-Pull	0.1 in	2.54 mm	Male Pin	10.67 mm	0.42 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze	19.05 mm	0.75 in	Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All	1
Sullins Connector Solutions PBC14DADN	2.54 µm	100 µin	28	Push-Pull	0.1 in	2.54 mm	Male Pin	10.67 mm	0.42 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze	19.05 mm	0.75 in	Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All				2	0.1 in	2.54 mm

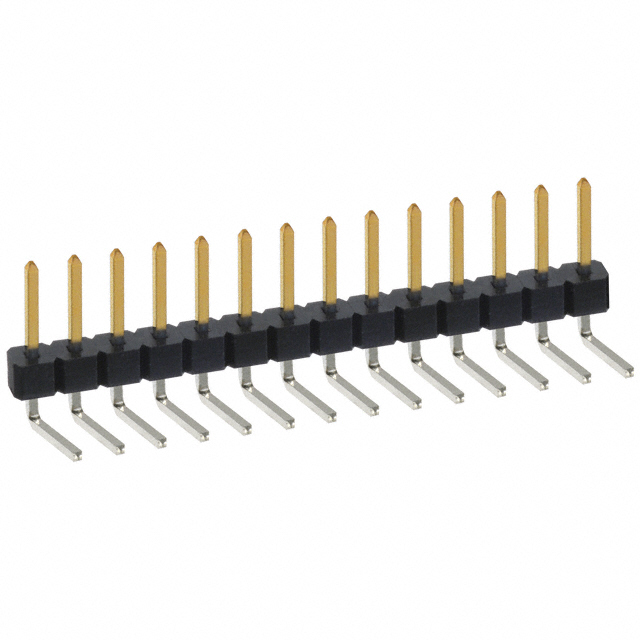

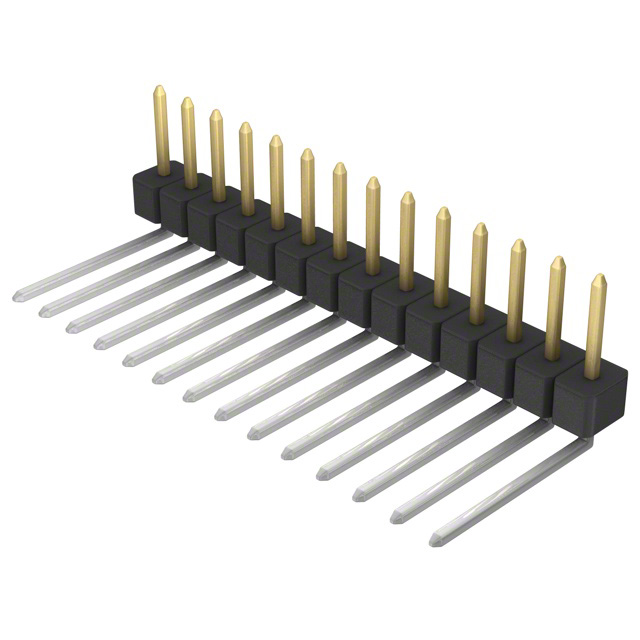

Sullins Connector Solutions PBC14SBCN	2.54 µm	100 µin	14	Push-Pull	0.14 in	3.56 mm	Male Pin	7.62 mm	0.3 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Right Angle Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All	1
Sullins Connector Solutions PBC14SABN	2.54 µm	100 µin	14	Push-Pull	0.1 in	2.54 mm	Male Pin	5.84 mm	0.23 "	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All	1						0.56 in	14.22 mm
Sullins Connector Solutions PBC14DAAN	2.54 µm	100 µin	28	Push-Pull	0.1 in	2.54 mm	Male Pin	3.05 mm	0.12 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze	11.43 mm	0.45 in	Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All				2	0.1 in	2.54 mm

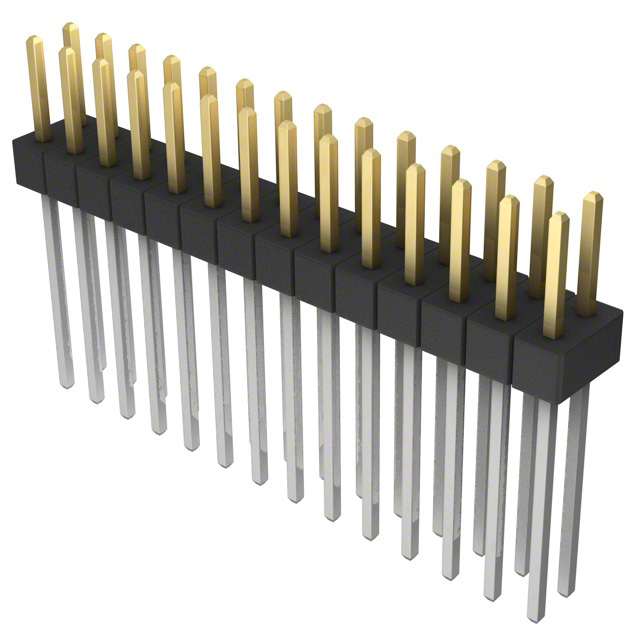

Sullins Connector Solutions PBC14DAEN	2.54 µm	100 µin	28	Push-Pull	0.1 in	2.54 mm	Male Pin	13.21 mm	0.52 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All				2	0.1 in	2.54 mm	0.85 in	21.59 mm
Sullins Connector Solutions PBC14SACN	2.54 µm	100 µin	14	Push-Pull	0.1 in	2.54 mm	Male Pin	8.13 mm	0.32 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	5.84 mm	0.23 in	0.1 "	2.54 mm	Square	Phosphor Bronze			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All	1						0.65 in	16.51 mm

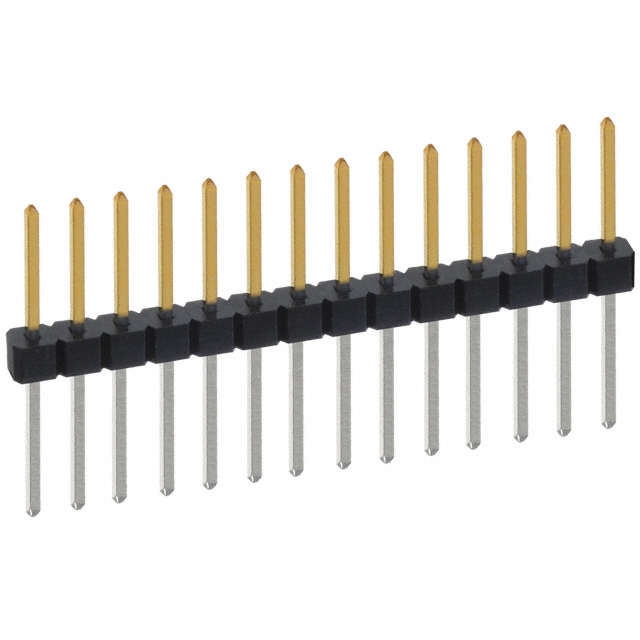

Sullins Connector Solutions PBC14SFDN	2.54 µm	100 µin	14	Push-Pull	0.1 in	2.54 mm	Male Pin	10.67 mm	0.42 in	Solder	Header Breakaway	-65 ░C	125 °C	Gold	Tin	Through Hole	8.08 mm	0.318 in	0.1 "	2.54 mm	Square	Phosphor Bronze			Polybutylene Terephthalate (PBT)	0.25 µm	10 µin	UL94 V-0	Unshrouded	3 A	Black	Board to Board Cable	All	1						0.838 in	21.29 mm
