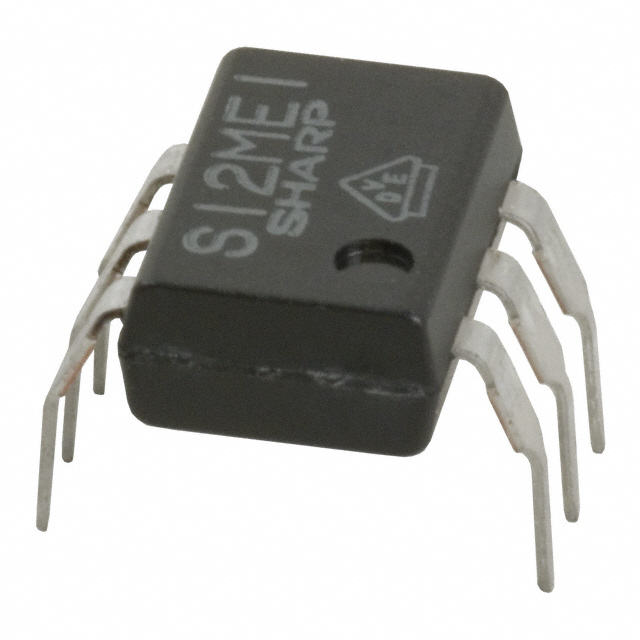

S12M Series
Manufacturer: Sharp Microelectronics
Beta
⌘K
OPTOISOLATOR 4KV SCR 1CH 6-DIP
| Part | Package Name | Voltage - Isolation | Current - DC Forward (If) (Max) | Output Type | Voltage - Off State | Operating Temperature (Max) | Operating Temperature (Min) | Zero Crossing Circuit | Turn On Time (Max) | Package Leads | Static dV/dt (Min) | Approval Agency | Current - LED Trigger (Ift) (Max) | Current - Hold (Ih) | Current - On State (It (RMS)) (Max) | Mounting Type | Voltage - Forward (Vf) (Typ) | Number of Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sharp Microelectronics | 6-DIP | 4000 Vpk | 50 mA | SCR | 400 V | 100 °C | -30 °C | No | 50 µs | 5 Leads | 3 V/µs | BSI UR VDE | 10 mA | 1 mA | 200 mA | Through Hole | 1.2 V | 1 |
