055909 Series

SlimStack Board-to-Board Plug, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 1.80mm Mated Height, 3.40 or 4.20mm Mated Width, 60 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Plug, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 1.80mm Mated Height, 3.40 or 4.20mm Mated Width, 60 Circuits

Part	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board	Features	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness

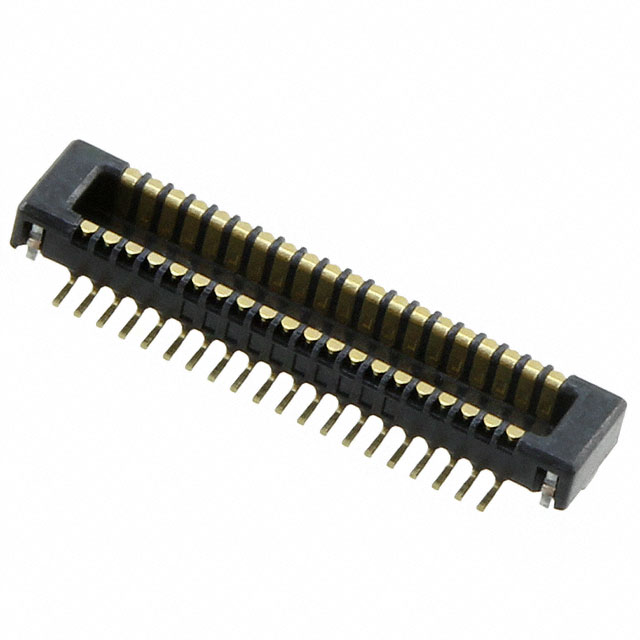

Molex 0559090474	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	40	8 çin	0.203 çm

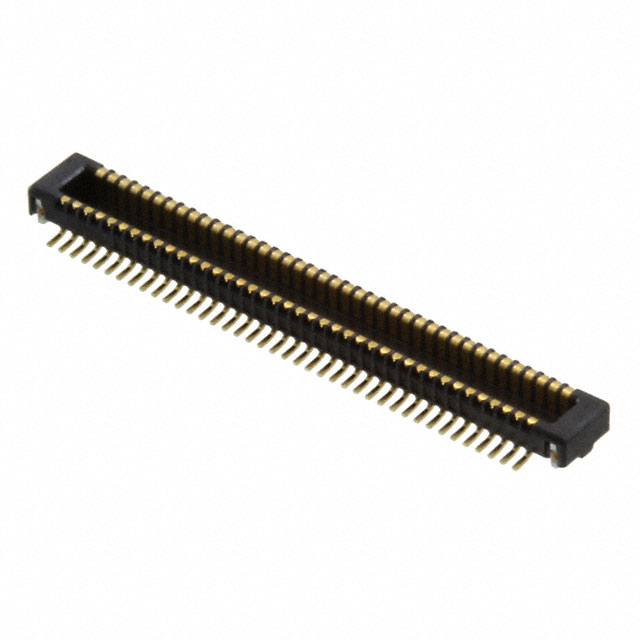

Molex 0559090874	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	80	8 çin	0.203 çm

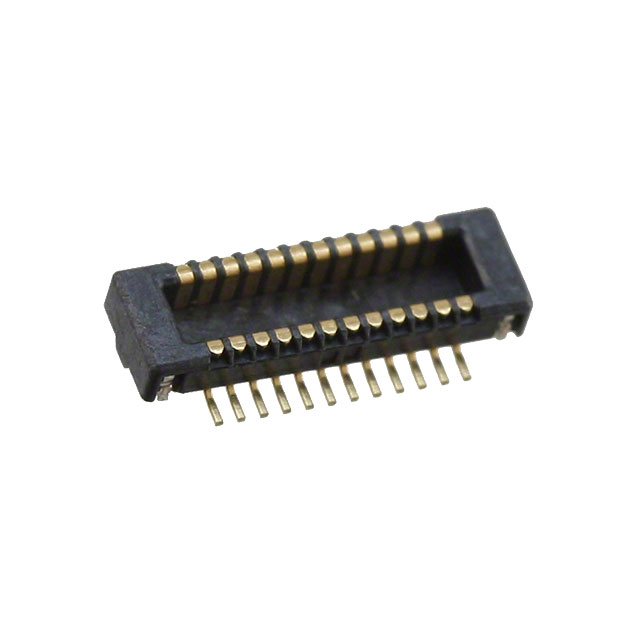

Molex 0559092474	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	24	8 çin	0.203 çm

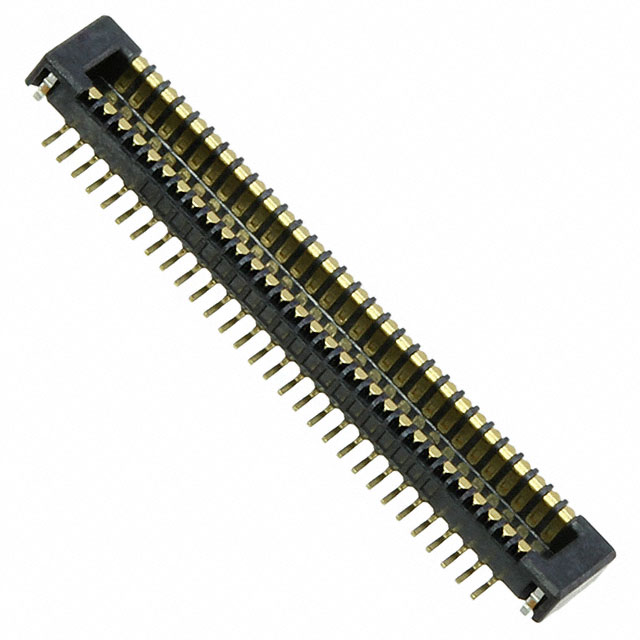

Molex 0559090674	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	60	8 çin	0.203 çm

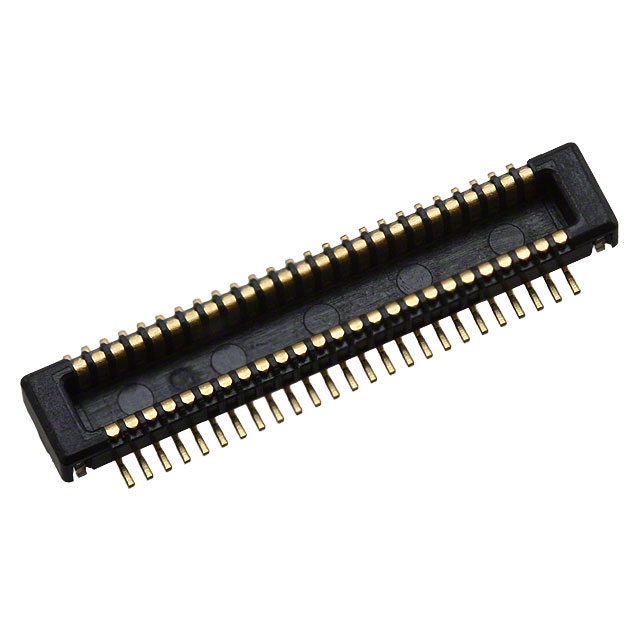

Molex 0559090574	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	50	8 çin	0.203 çm

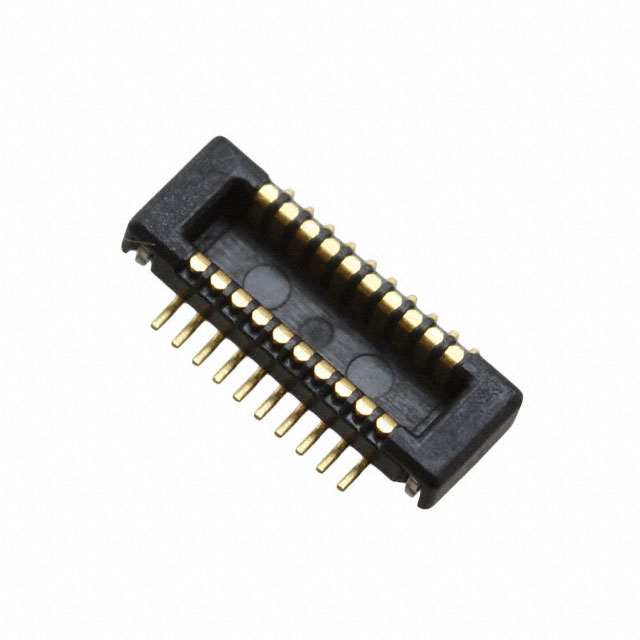

Molex 0559090274	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	20	8 çin	0.203 çm
Molex 0559092674	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	26	8 çin	0.203 çm

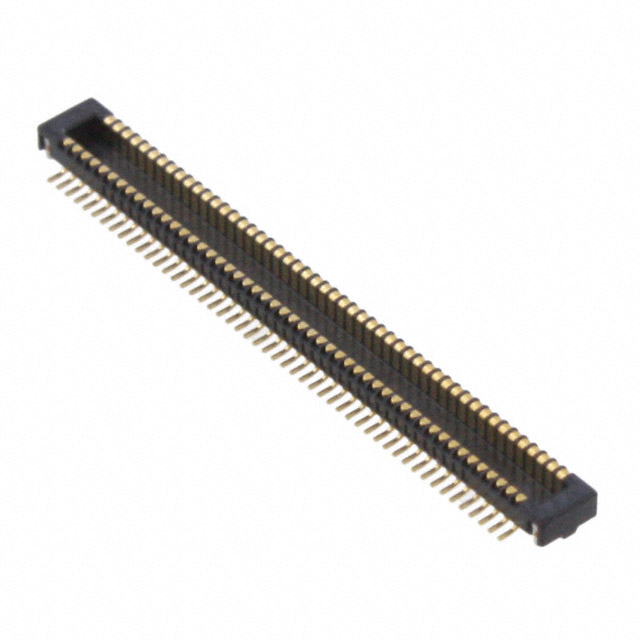

Molex 0559091074	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	100	8 çin	0.203 çm

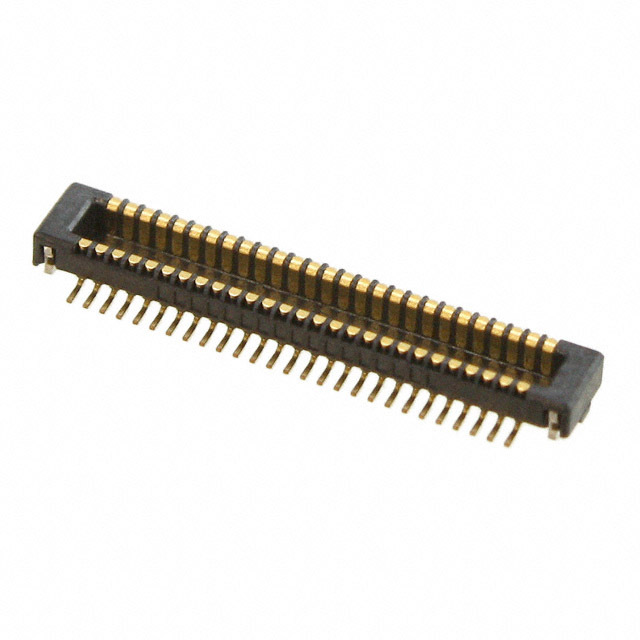

Molex 0559095472	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	54	8 çin	0.203 çm

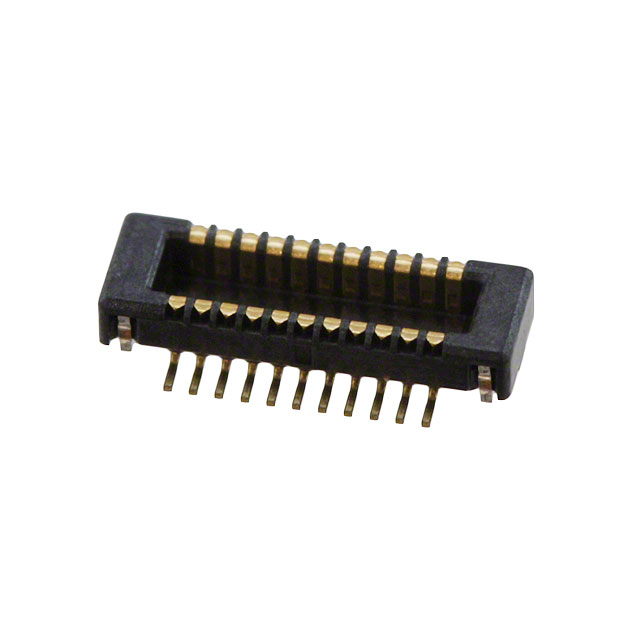

Molex 0559092274	0.016 in	0.4 mm	Gold	Outer Shroud Contacts Plug	2	1.5 mm	1.14 mm	0.045 in	Solder Retention	Surface Mount	22 positions	8 çin	0.203 çm
