083-58 Series

Catalog

CONN UHF PLUG STR CRIMP

Part	Housing Color	Voltage Rating	Connector Style	Impedance	Shield Termination	Cable Group	Mating Cycles	Contact Termination	Body Finish	Mounting Type	Body Material	Includes	Center Contact Material	Center Contact Plating	Connector Type	Frequency - Max [Max]	Dielectric Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]

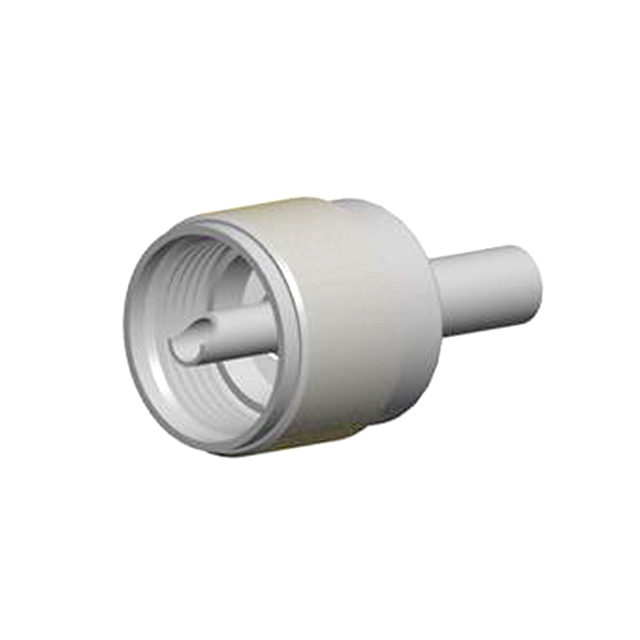

Amphenol RF 083-58SCP-RFX	Silver	500 V	UHF	Non-Constant	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500	Crimp Solder	Nickel	Free Hanging (In-Line)	Brass	1 Connector 1 Ferrule	Brass	Silver	Male Pin Plug	300 MHz	Phenol Formaldehyde (Phenolic)	1

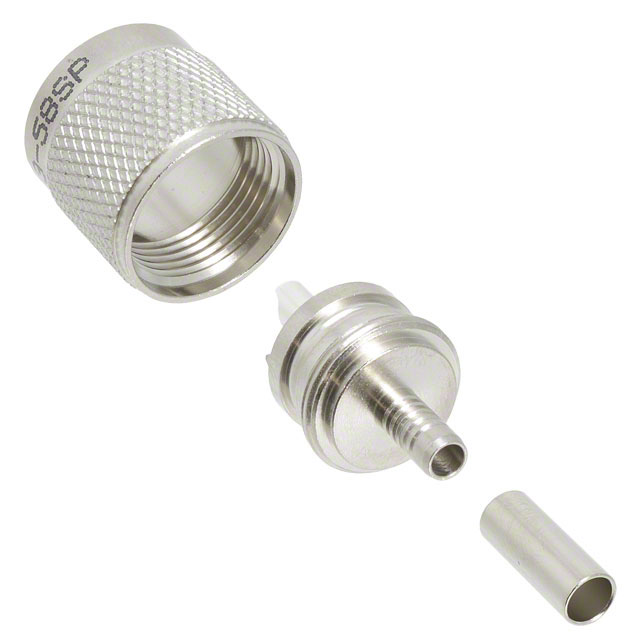

Amphenol RF 083-58SP	Silver	500 V	UHF	Non-Constant	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500	Solder	Nickel	Free Hanging (In-Line)	Brass	1 Connector 1 Ferrule	Brass	Nickel	Male Pin Plug	300 MHz	Liquid Crystal Polymer (LCP)	1	-65 ░C	165 °C

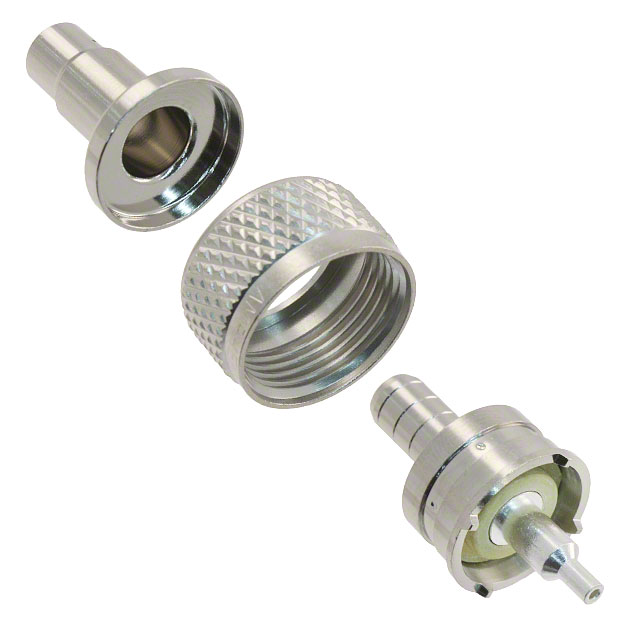

Amphenol RF 083-58DCP-2RFX	Silver	500 V	UHF	Non-Constant	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500	Crimp	Nickel	Free Hanging (In-Line)	Brass	1 Connector 1 Coupling Nut 1 Ferrule	Brass	Silver	Male Pin Plug	300 MHz	Phenol Formaldehyde (Phenolic)	1	-55 °C	150 °C
