62NT1 Series

Catalog

TOGGLE SWITCHES TOGGLE SW 2POLE STEP BASE 2POS STD LEVER

Part	Illumination	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Length [x]	Current Rating (Amps)	Bushing Thread	Termination Style	Ingress Protection	Actuator Type	Switch Function	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [diameter]
Honeywell Sensing and Productivity Solutions 62NT1-8-NH	Non-Illuminated	DPDT	71 °C	-40 C	Sealed	17.02 mm	10 A	15/32-32	Screw Terminal	IP67/IP68	Standard Round	On-Mom	125 V	Panel Mount	12.4 mm

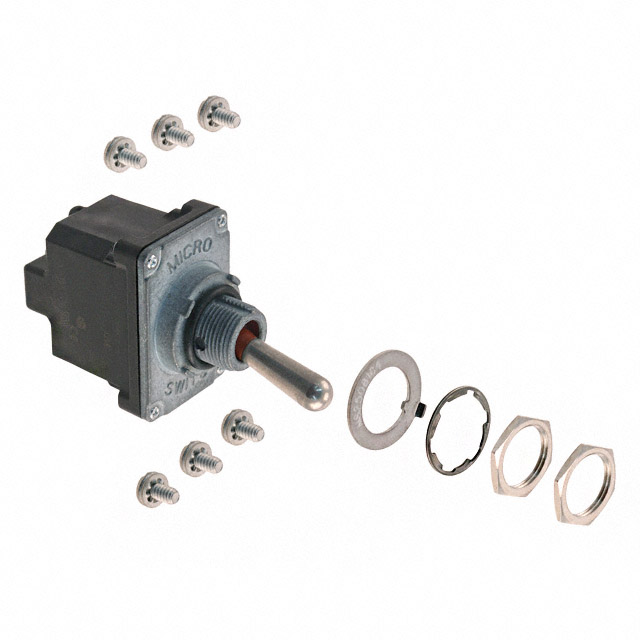

Honeywell Sensing and Productivity Solutions 62NT1-2	Non-Illuminated	DPST	71 °C	-40 C	Sealed	17.02 mm	15 A	15/32-32	Screw Terminal	IP67/IP68	Standard Round	On-Off	125 V	Panel Mount	12.4 mm

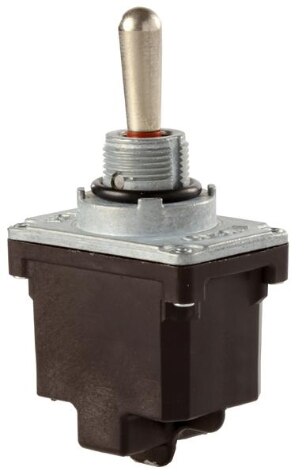

Honeywell Sensing and Productivity Solutions 62NT1-1-NH	Non-Illuminated	DPDT	71 °C	-40 C	Sealed	17.02 mm	15 A	15/32-32	Screw Terminal	IP67/IP68	Standard Round	On-Off-On	125 V	Panel Mount	12.4 mm
Honeywell Sensing and Productivity Solutions 62NT1-1	Non-Illuminated	DPDT	71 °C	-40 C	Sealed	17.02 mm	15 A	15/32-32	Screw Terminal	IP67/IP68	Standard Round	On-Off-On	125 V	Panel Mount	12.4 mm
