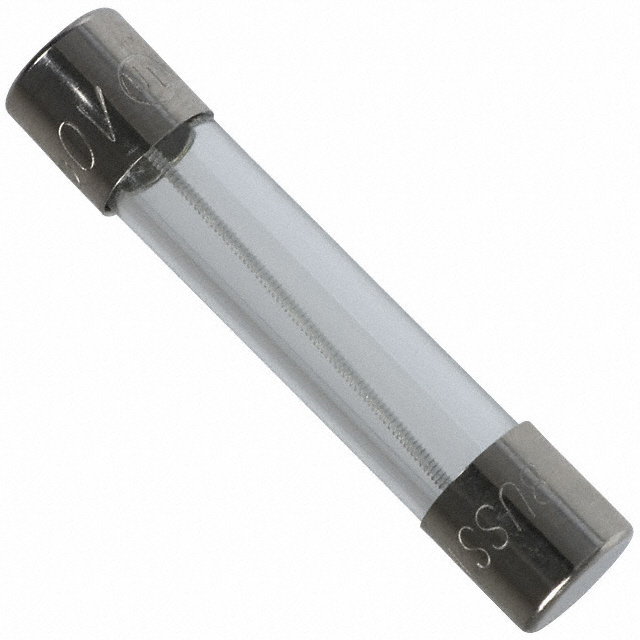

MDL Series

Cartridge Fuses SMALL DIMENSION FUSE

Manufacturer: Eaton - Electronics Division

Catalog

Cartridge Fuses SMALL DIMENSION FUSE

Catalog

Cartridge Fuses SMALL DIMENSION FUSE

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Response Time	Voltage Rating - AC	Package / Case [y]	Package / Case [x]	Package / Case	Fuse Type	Breaking Capacity @ Rated Voltage	Approval Agency	Current Rating (Amps)	Melting I²t	Mounting Type	DC Cold Resistance	Size / Dimension [diameter]

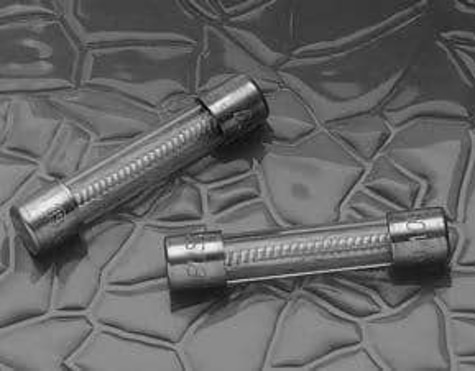

Eaton - Electronics Division BK/MDL-8-R	31.75 mm	1.25 in	6.35 mm	0.25 "	Slow Blow	250 V		0.25 in	3AB 3AG	Cartridge Glass	200 A	CE CSA UL	8 A	47.8	Requires Holder
Eaton - Electronics Division BP/MDL-7	31.75 mm	1.25 in	6.35 mm	0.25 "	Slow Blow	125 V 250 V		0.25 in	3AB 3AG	Cartridge Glass			7 A		Requires Holder
Eaton - Electronics Division MDL-3/10-R	31.75 mm	1.25 in	6.35 mm	0.25 "	Slow Blow	250 V		0.25 in	3AB 3AG	Cartridge Glass	35 A	CE CSA UL	0.3 A	0.412	Requires Holder	2.046 Ohms
Eaton - Electronics Division BK/MDL-6-1/4-R	31.75 mm	1.25 in	6.35 mm	0.25 "	Slow Blow	250 V		0.25 in	3AB 3AG	Cartridge Glass	200 A	CE CSA UL	6.25 A	38.7 I²t	Requires Holder	0.02 Ohms
Eaton - Electronics Division MDL-2-R	31.75 mm	1.25 in	6.35 mm	0.25 "	Slow Blow	250 V		0.25 in	3AB 3AG	Cartridge Glass	100 A	CE CSA UL	2 A	62.3	Requires Holder	0.116 Ohms
Eaton - Electronics Division MDL-V-1/4-R			0.266 " 1.292 "		Slow Blow	250 V		0.25 "	3AB 3AG	Cartridge Glass	35 A	CE CSA UL	0.25 A	0.447	Through Hole		6.76 mm 32.82 mm
