1971838 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

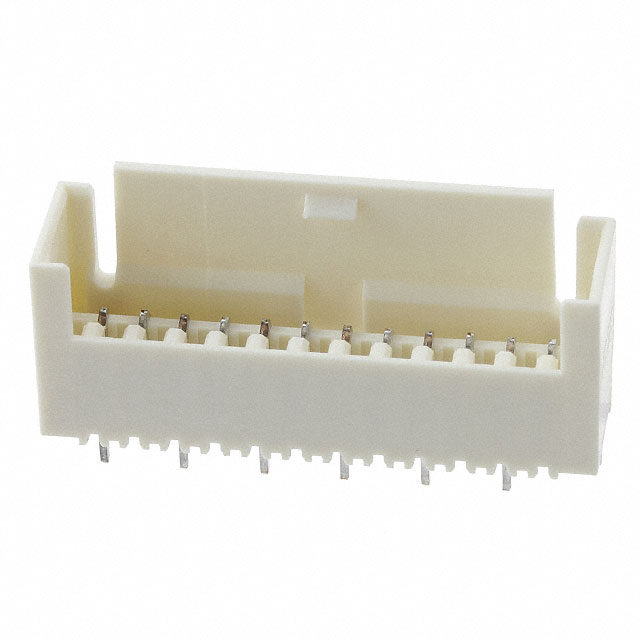

12P,RAST 2.5 TAB HEADER,EX- LOCKING,THV
| Part | Applications | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Style | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Insulation Color | Mounting Type | Shrouding | Contact Finish - Mating | Connector Type | Number of Positions | Number of Positions Loaded | Contact Type | Number of Rows | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Contact Material | Termination | Material Flammability Rating | Features | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | Rectangular | 120 °C | -40 C | Board to Cable/Wire | 0.61 in | 15.49 mm | 2.5 mm | 0.098 in | Natural | Through Hole | Shrouded - 4 Wall | Silver | Header | 12 | All | Tab | 1 | Silver | 0.114 in | 2.9 mm | Nylon Polyamide (PA) | Copper Alloy | Solder | UL94 V-0 | Board Guide Glow Wire Compliant | Locking Ramp |
