R12562 Series

Catalog

SMA / SQUARE FLANGE JACK RECEPTA

Part	Voltage Rating	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Number of Ports	Impedance	Features	Mounting Feature	Center Contact Material	Mounting Type	Connector Type	Housing Color	Contact Termination	Connector Style	Frequency - Max [Max]	Shield Termination	Fastening Type	Body Finish

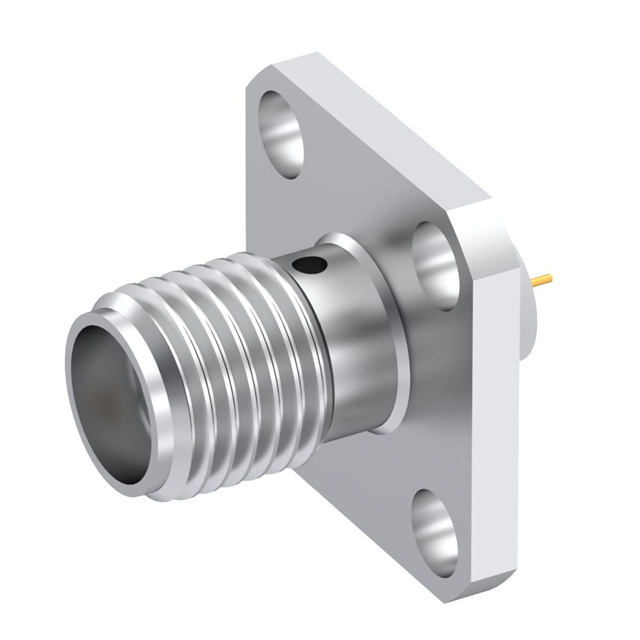

Radiall USA, Inc. R125622001	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	-65 ░C	165 °C	500	Gold	1	50 Ohms	Extended Insulation	Flange	Beryllium Copper	Panel Mount Through Hole	Female Socket Jack	Silver	Solder Tab	SMA	18 GHz	Solder	Threaded

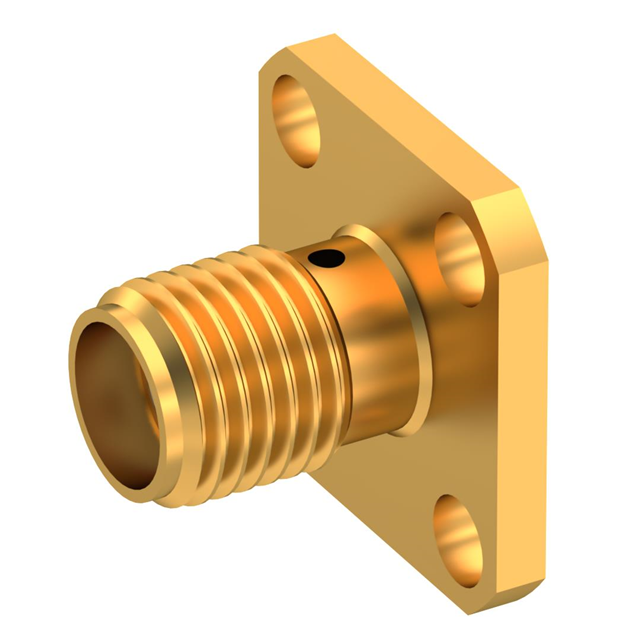

Radiall USA, Inc. R125620000	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	-65 ░C	165 °C	500	Gold	1	50 Ohms		Flange	Beryllium Copper	Panel Mount Through Hole	Female Socket Jack	Gold	Solder Tab	SMA	18 GHz	Solder	Threaded	Gold
Radiall USA, Inc. R125622000W	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	-65 ░C	165 °C	500	Gold	1	50 Ohms	Extended Insulation	Flange	Beryllium Copper	Panel Mount Through Hole	Female Socket Jack	Gold	Solder Tab	SMA	18 GHz	Solder	Threaded	Gold
Radiall USA, Inc. R125620001W	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	-65 ░C	165 °C	500	Gold	1	50 Ohms		Flange	Beryllium Copper	Panel Mount Through Hole	Female Socket Jack	Silver	Solder Tab	SMA	18 GHz	Solder	Threaded

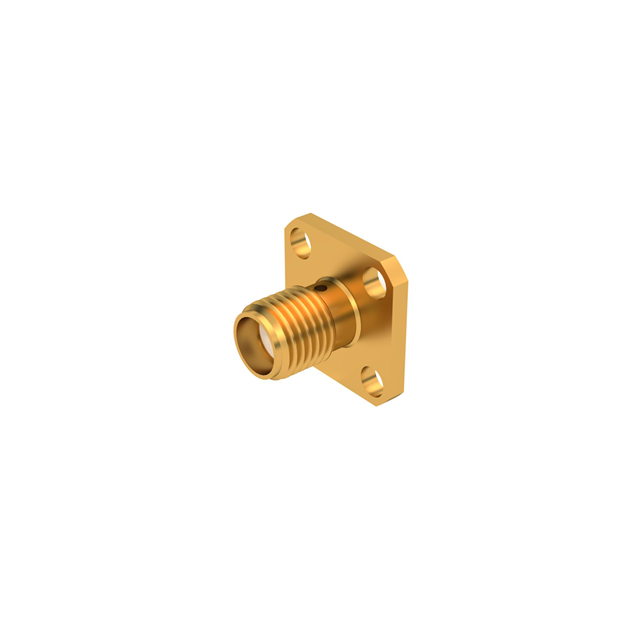

Radiall USA, Inc. R125622000	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	-65 ░C	165 °C	500	Gold	1	50 Ohms	Extended Insulation	Flange	Beryllium Copper	Panel Mount Through Hole	Female Socket Jack	Gold	Solder Tab	SMA	18 GHz	Solder	Threaded	Gold
Radiall USA, Inc. R125620000W	500 V	Polytetrafluoroethylene (PTFE)	Stainless Steel	-65 ░C	165 °C	500	Gold	1	50 Ohms		Flange	Beryllium Copper	Panel Mount Through Hole	Female Socket Jack	Gold	Solder Tab	SMA	18 GHz	Solder	Threaded	Gold
