BFB03512 Series
Manufacturer: Delta Electronics
Beta
⌘K

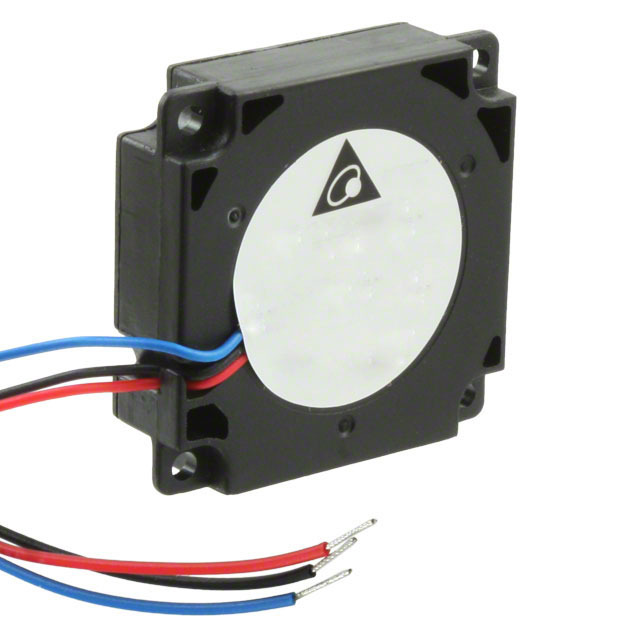

FAN BLOWER 35X10MM 12VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Lifetime @ Temp. | Features | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Static Pressure | Static Pressure | RPM | Width [y] | Bearing Type | Voltage - Rated | Noise | Power (Watts) | Weight | Weight | Termination | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 7 V | 13.2 VDC | Plastic | Plastic | 30000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | 70 °C | -10 °C | Blower | 35 mm | Square | 35 mm | 0.443 in H2O | 110.3 Pa | 8500 RPM | 10 mm | Ball | 12 VDC | 31 dB(A) | 960 mW | 11.34 g | 0.025 lb | 3 Wire Leads | CE CSA UL VDE |
