BD750L2FP3-C Series

500mA 5V Output, Ultra Low Iq, High-Accuracy LDO Regulator for Automotive

Catalog

500mA 5V Output, Ultra Low Iq, High-Accuracy LDO Regulator for Automotive

Part	Channels per IC	Voltage - Output	Utilized IC / Part	Current - Output	Regulator Type	Supplied Contents	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Quiescent (Iq)	Package / Case	Voltage - Input (Max) [Max]	Number of Regulators	Output Type	Grade	Current - Supply (Max) [Max]	Mounting Type	Qualification	Supplier Device Package	PSRR	Voltage - Output (Min/Fixed)	Output Configuration	Protection Features	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case

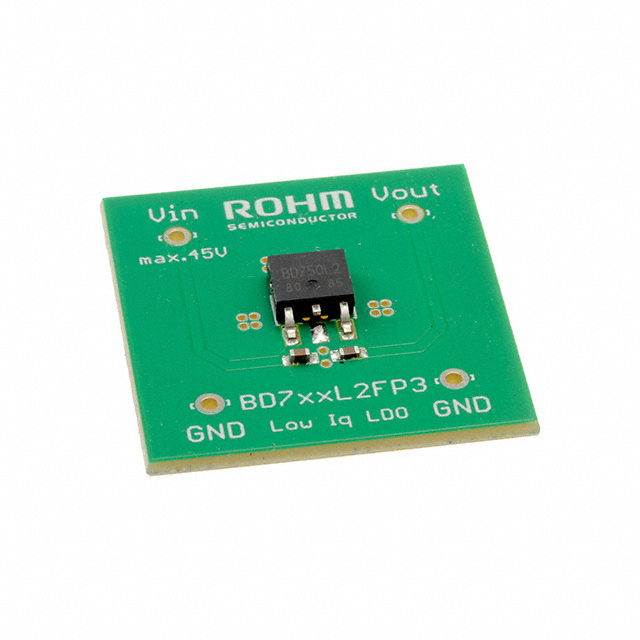

Rohm Semiconductor BD750L2FP-EVK-301	1 - Single	5 V	BD750	200 mA	Positive Fixed	Board(s)	Fully Populated	45 V	5.8 V
Rohm Semiconductor BD750L5FP-CE2				500 mA						6 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3	45 V	1	1.81 mOhm	Automotive	15 µA	Surface Mount	AEC-Q100	TO-252	60 dB	5 V	Positive	Over Current Over Temperature	0.5 V	125 °C	-40 °C
Rohm Semiconductor BD750L2EFJ-CE2				200 mA						6 µA	8-SOIC	45 V	1	1.81 mOhm	Automotive	15 µA	Surface Mount	AEC-Q100	8-HTSOP-J	60 dB	5 V	Positive	Over Current Over Temperature	0.7 V	125 °C	-40 °C	0.154 in	3.9 mm
Rohm Semiconductor BD750L2FP3-CE2				200 mA						6 µA	TO-261-4 TO-261AA	45 V	1	1.81 mOhm	Automotive	15 µA	Surface Mount	AEC-Q100	SOT-223-4F	60 dB	5 V	Positive	Over Current Over Temperature	0.7 V	125 °C	-40 °C
Rohm Semiconductor BD750L05G-CTR				50 mA						13 µA	SC-74A SOT-753	45 V	1	1.81 mOhm		15 µA	Surface Mount		5-SSOP	60 dB	5 V	Positive	Over Current Over Temperature Short Circuit	0.5 V	125 °C	-40 °C

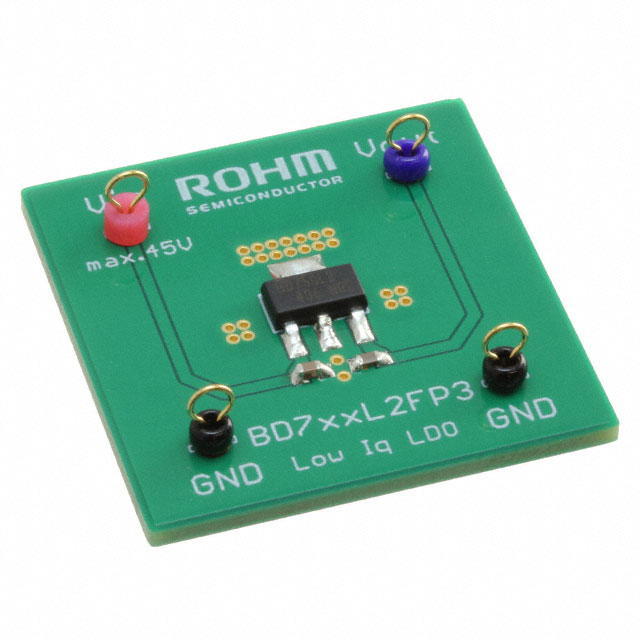

Rohm Semiconductor BD750L2FP3-EVK-301	1 - Single	5 V	BD750	200 mA	Positive Fixed	Board(s)	Fully Populated	45 V	5.8 V
Rohm Semiconductor BD750L2FP-CE2				200 mA						6 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3	45 V	1	1.81 mOhm	Automotive	15 µA	Surface Mount	AEC-Q100	TO-252	60 dB	5 V	Positive	Over Current Over Temperature	0.7 V	125 °C	-40 °C

Catalog

500mA 5V Output, Ultra Low Iq, High-Accuracy LDO Regulator for Automotive

Key Features

• Ultra low quiescent current: 6μA(Typ), Output current capability: 200mA, Output voltage: 3.3V or 5.0V(Typ), High output voltage accuracy: ±2%, Low saturation voltage by using PMOS output transistor., Integrated overcurrent protection to protect the IC from damage caused by output short-circuiting., Integrated thermal shutdown to protect the IC from overheating at overload conditions., Low ESR ceramic capacitor can be used as output capacitor., HTSOP-J8, TO252-3, SOT223-4(F)(SOT223-4, SOT223-4F) 3type package

Description

The BD750L05G-C linear regulator is designed as low current consumption products for power supplies in various automotive applications. This product is designed for up to 45V absolute maximum supply voltage and operate until 50mA output current with low current consumption of 6µA (Typ). It can regulate the output at a very high accuracy of ±2%. This device features an integrated Over Current Protection to keep the device from a damage that is caused by short-circuit or overload. This product also integrates a Thermal Shutdown protection to avoid the damage from overheating. Furthermore, low ESR ceramic capacitors are sufficiently applicable for the output phase compensation.
