214429 Series

Manufacturer: Molex

Catalog

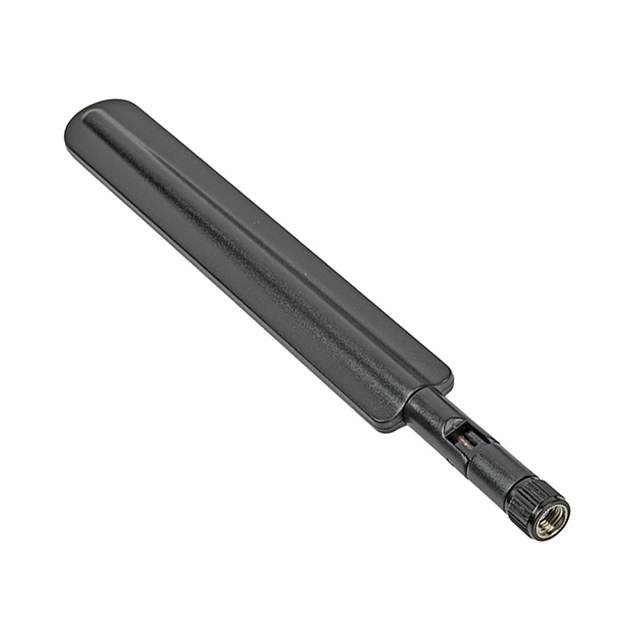

ANTENNAS MOLEX 5G EXTERNAL ANTENNA_HINGED_W_M

Part	Height (Max) [Max]	Height (Max) [Max]	Gain	Frequency (Center/Band)	Applications	Return Loss	Frequency Range [Max]	Frequency Range	Frequency Range [Min]	Mounting Type	Antenna Type	Number of Bands	Frequency Group	RF Family/Standard	Termination
Molex 2144291001	171.5 mm	6.752 in	1.6 dBi 3.5 dBi 3.6 dBi 5.5 dBi	2.2 GHz 3.75 GHz 4.7 GHz 829 MHz	LTE	-10 dB -5 dB	2.69 GHz 5 GHz 960 MHz	3.3 GHz 4.2 GHz	1.71 GHz 4.4 GHz 698 MHz	Connector Mount	Blade Tilt	4	Wide Band	Cellular
Molex 2144290011	171.5 mm	6.752 in	1.6 dBi 3.5 dBi 3.6 dBi 5.5 dBi	2.2 GHz 3.75 GHz 4.7 GHz 829 MHz	LTE	-10 dB -5 dB	2.69 GHz 4.2 GHz 5 GHz 960 MHz		1.71 GHz 3.3 GHz 4.4 GHz 698 MHz	Connector Mount	Blade Tilt	4	Wide Band	Cellular	RP-SMA Male
Molex 2144290001	171.5 mm	6.752 in	1.6 dBi 3.5 dBi 3.6 dBi 5.5 dBi	2.2 GHz 3.75 GHz 4.7 GHz 829 MHz	LTE	-10 dB -5 dB	2.69 GHz 4.2 GHz 5 GHz 960 MHz		1.71 GHz 3.3 GHz 4.4 GHz 698 MHz	Connector Mount	Blade Tilt	4	Wide Band	Cellular
Molex 2144291011	171.5 mm	6.752 in	1.6 dBi 3.5 dBi 3.6 dBi 5.5 dBi	2.2 GHz 3.75 GHz 4.7 GHz 829 MHz	LTE	-10 dB -5 dB	2.69 GHz 5 GHz 960 MHz	3.3 GHz 4.2 GHz	1.71 GHz 4.4 GHz 698 MHz	Connector Mount	Blade Tilt	4	Wide Band	Cellular	RP-SMA Male
