PX2AS2 Series

Catalog

SENSOR PRESS 250PSIS 4-20MA

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Port Style	Output Type	Package / Case	Pressure Type	Output [Max]	Output [Min]	Applications	Port Size	Port Size

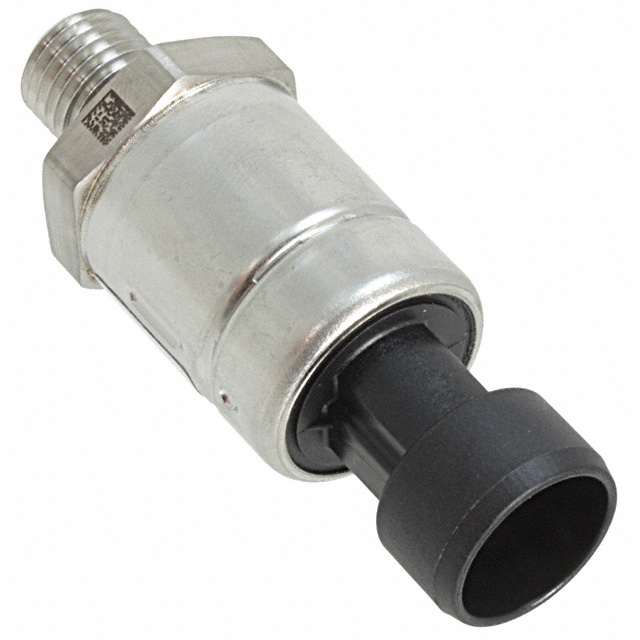

Honeywell Sensing and Productivity Solutions PX2AS2XX250PSCHX	5171.07 kPa	750 PSI	Connector	30 VDC	8 V	Temperature Compensated	250 PSI	1723.69 kPa	125 °C	-40 °C	0.25 %	Threaded	Analog Current	Cylinder	Sealed Gauge	20 mA	4 mA	Industrial Automation	Male UNF	0.4375 " 11.11 mm

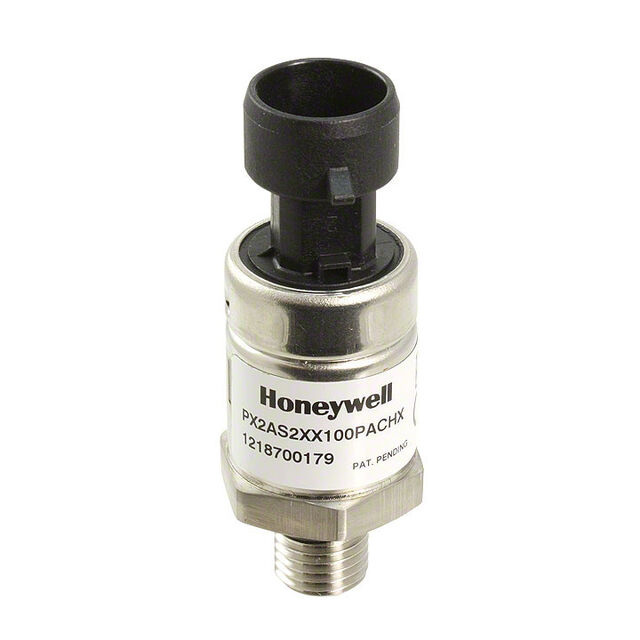

Honeywell Sensing and Productivity Solutions PX2AS2XX100PACHX	3102.64 kPa	450 PSI	Connector	30 VDC	8 V	Temperature Compensated	100 PSI	689.48 kPa	125 °C	-40 °C	0.25 %	Threaded	Analog Current	Cylinder		20 mA	4 mA	Industrial Automation	Male UNF	0.4375 " 11.11 mm

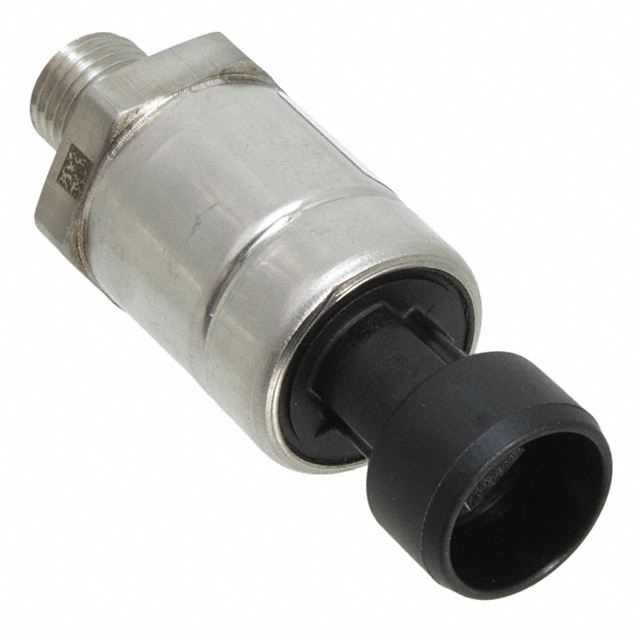

Honeywell Sensing and Productivity Solutions PX2AS2XX250PSAAX	5171.07 kPa	750 PSI	Connector	5.25 V	4.75 V	Temperature Compensated	250 PSI	1723.69 kPa	125 °C	-40 °C	0.25 %	Threaded	Analog Voltage	Cylinder	Sealed Gauge	4.5 V	0.5 V	Industrial Automation	Male UNF	0.4375 " 11.11 mm
