M9520010 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

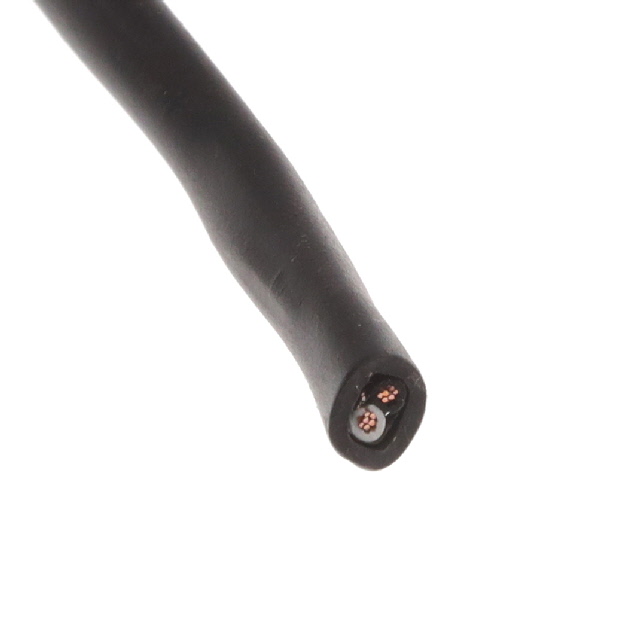

CABLE 2COND 20AWG BLK SHLD 500'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Shield Type | Conductor Material | Conductor Insulation | Features | Jacket Color | Voltage | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.219 " | 5.56 mm | Multi-Conductor | -20 ░C | 105 ░C | 20 AWG | 0.038 in | 0.965 mm | Foil | Copper Bare | Poly-Vinyl Chloride (PVC) | Drain Wire UV Resistant | Black | 300 VDC | 2 | 0.0121 | 7 | Communication Control | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
