T 3434 Series

Catalog

CONN PLUG MALE 7P SILV SLDR CUP

Part	Shell Finish	Shell Material	Fastening Type	Mounting Type	Current Rating (Amps)	Shell Size - Insert	Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating	Connector Type	Ingress Protection	Number of Positions	Primary Material	Contact Finish - Mating	Contact Shape	Material Flammability Rating	Note	Contact Size	Contact Type	Insert Material	Housing Color	Shielding	Type
Amphenol Tuchel Industrial T 3434 501	Nickel	Die Cast	Bayonet Lock	Free Hanging (In-Line)	7 A	M16-7	Keyed	Silver	-40 C	100 °C	Strain Relief	250 V	Plug Male Pins	IP40	7	Metal	Silver

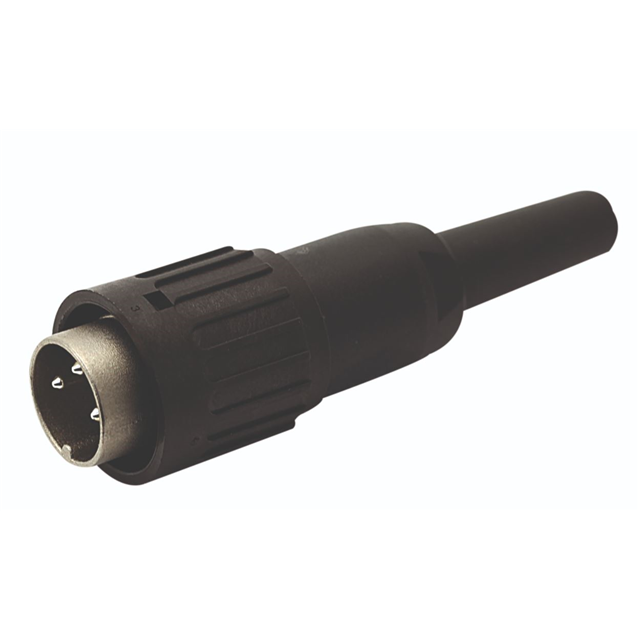

Amphenol Tuchel Industrial T 3434 551	Nickel	Die Cast	Bayonet Lock	Free Hanging (In-Line)		M16-7	Keyed		-40 C	100 °C	Cable Clamp Coupling Nut Strain Relief		Plug Housing	IP40	7			Circular	UL94 V-0	Contacts Not Included	1.5 mm	Crimp	Thermoplastic	Black Silver	Unshielded	For Male Pins
Amphenol Tuchel Industrial T 3434 502	Nickel	Die Cast	Bayonet Lock	Free Hanging (In-Line)	7 A	M16-7	Keyed	Silver	-40 C	100 °C	Cable Clamp Strain Relief	250 V	Plug Male Pins	IP40	7	Metal	Silver
