ERM10A Series

Catalog

MODULE DC-DC 110VIN 1-OUT 5V 10A 50W 8-PIN QUARTER-BRICK

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Efficiency	Features	Mounting Type	Voltage - Output 1	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Power (Watts)	Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]

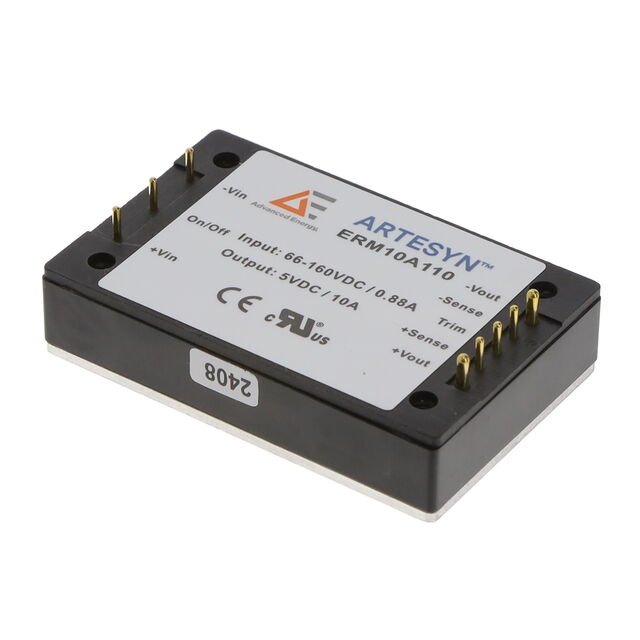

ARTESYN / Advanced Energy ERM10A110	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	1	90 %	OCP Remote On/Off SCP UVLO	Through Hole	5 V	8-DIP Module	ITE (Commercial) Railway	85 °C	-40 C	66 V	50 W	Isolated Module	160 V	10 A	3000 V
ARTESYN / Advanced Energy ERM10A110-HS	57.9 mm	1.45 in	0.78 in	2.28 "			1	90 %	OCP Remote On/Off SCP UVLO	Through Hole	5 V	8-DIP Module	ITE (Commercial) Railway	85 °C	-40 C	66 V	50 W	Isolated Module	160 V	10 A	3000 V	20 mm	36.8 mm
