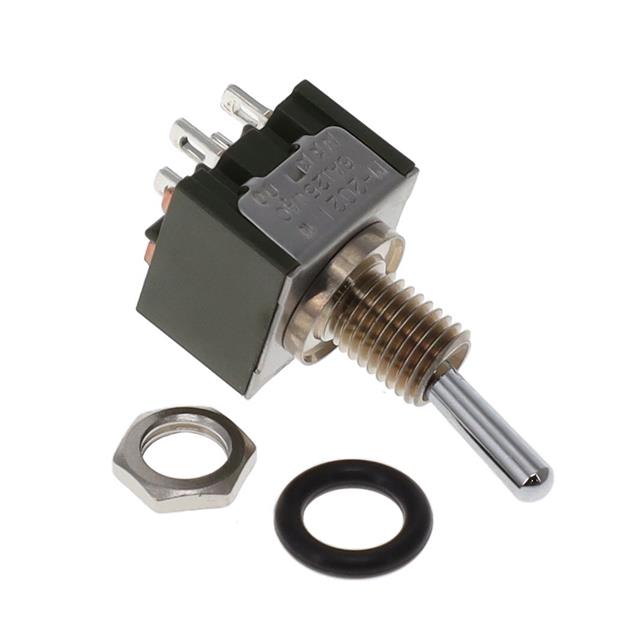

M2021SD Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPST 6A 125V
| Part | Actuator Material | Electrical Life | Illumination | Circuit | Mounting Type | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Bushing Thread | Switch Function | Features | Ingress Protection | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Voltage Rating - AC | Termination Style | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | Non-Illuminated | DPST | Panel Mount | Standard Round | 85 °C | -30 ░C | 0.75 | M6 | On-Off | Epoxy Sealed Terminals | IP67 - Dust Tight Waterproof | 6.5 mm | 30 V | 125 V | Solder Lug | 4 A 6 A |
 NKK Switches | Brass Chrome Plated | 50000 Cycles | Non-Illuminated | DPST | Panel Mount | Standard Round | 85 °C | -30 ░C | 1/4-40 | On-Off | Epoxy Sealed Terminals | 6.5 mm | 28 V | 28 V | Solder Lug | 0.4 VA |
