FPC125 Series
Manufacturer: Chip Quik Inc.
Beta
⌘K

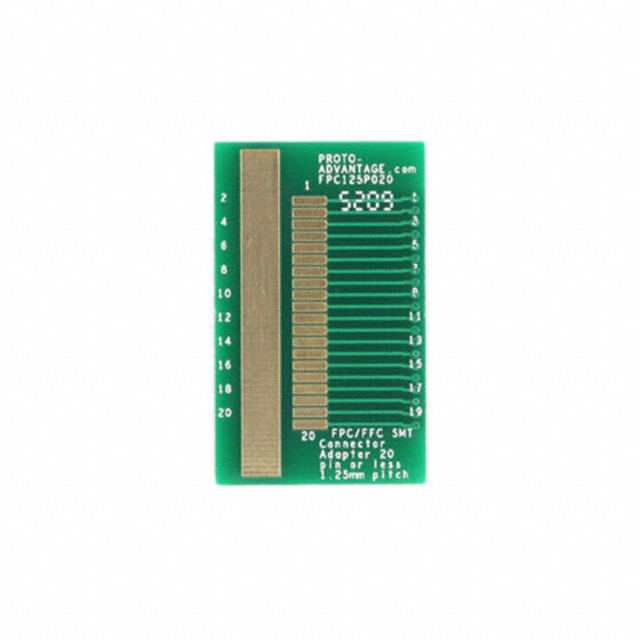

FPC/FFC SMT CONNECTOR 1.25 MM PI
| Part | Proto Board Type | Board Thickness | Board Thickness | Board Thickness | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package Accepted | Material | Pitch | Pitch | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chip Quik Inc. | SMD to DIP | 1.57 mm | 0.062 " | 0.0625 in | 36.83 mm | 0.9 in | 1.45 in | 22.86 mm | FPC Connector | FR4 Epoxy Glass | 0.049 in | 1.25 mm | 20 |
