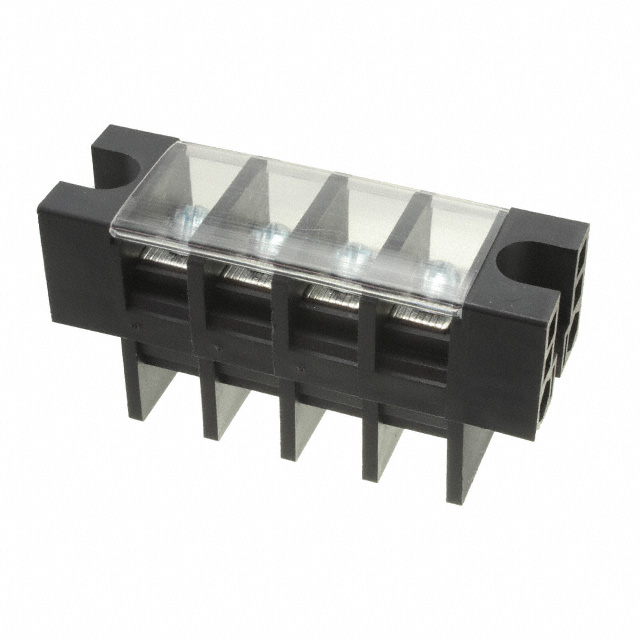

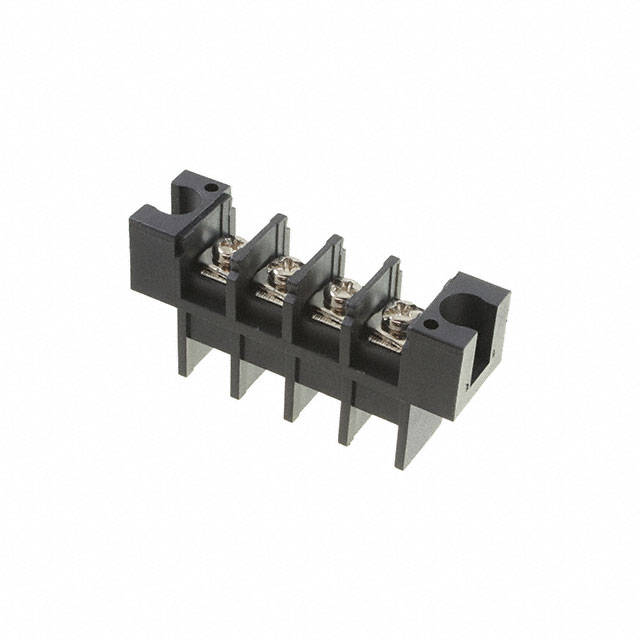

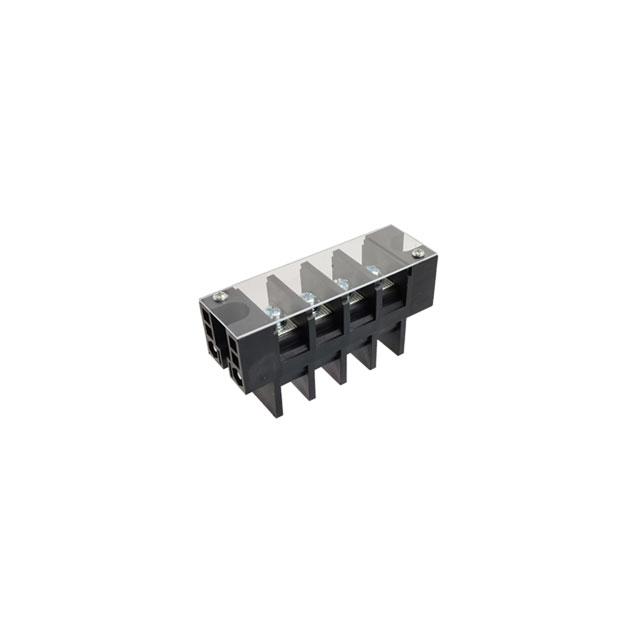

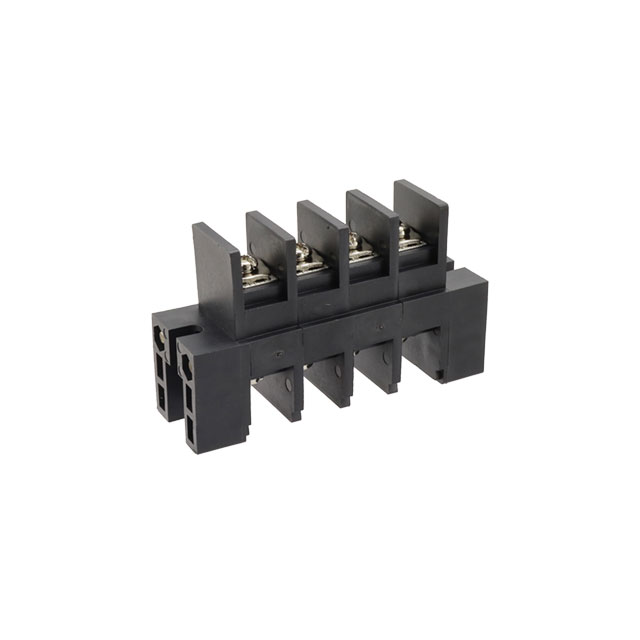

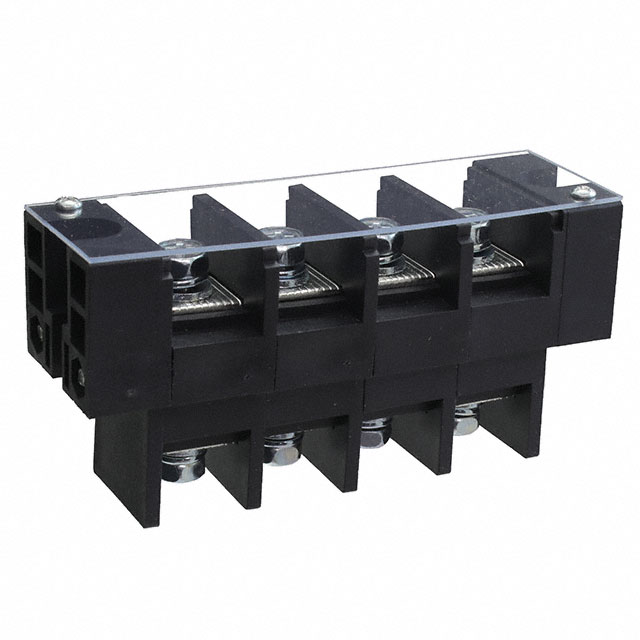

TBU-04 Series
Manufacturer: Adam Tech
Catalog
TERMINAL BLOCK, 4 POSITION
| Part | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Terminal Block Type | Barrier Type | Number of Circuits | Terminal Screw Material | Current Rating (Amps) | Material - Insulation | Number of Wire Entries | Pitch [x] | Pitch [x] | Top Termination | Bottom Termination | Voltage Rating | Features | Number of Rows | Terminal Screw Finish | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Chassis Panel | 6 AWG | 14 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 65 A | Polybutylene Terephthalate (PBT) | 4 | 0.63 in | 16 mm | Screws | Screw | 600 V | Flange | 1 | Nickel | UL94 V-0 |
 Adam Tech | Chassis Panel | 10 AWG | 22 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 30 A | Polybutylene Terephthalate (PBT) | 4 | 0.433 in | 11 mm | Screws with Captive Plate | Screw | 300 VDC | Flange | 1 | UL94 V-0 | |
 Adam Tech | Chassis Panel | 8 AWG | 22 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 50 A | Polybutylene Terephthalate (PBT) | 4 | 0.512 in | 13 mm | Screws with Captive Plate | Screw | 600 V | Flange | 1 | Nickel | UL94 V-0 |
 Adam Tech | Chassis Panel | 6 AWG | 14 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 65 A | Polybutylene Terephthalate (PBT) | 4 | 0.63 in | 16 mm | Screws | Screw | 600 V | Flange | 1 | Nickel | UL94 V-0 |
