ICD15S13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

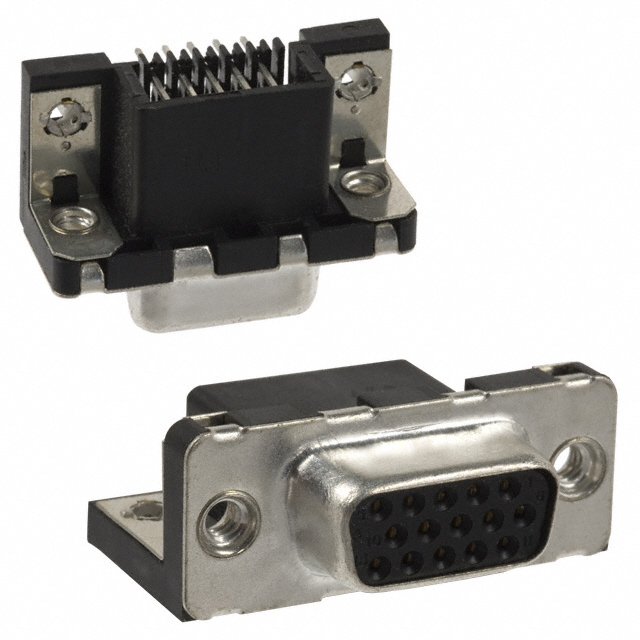

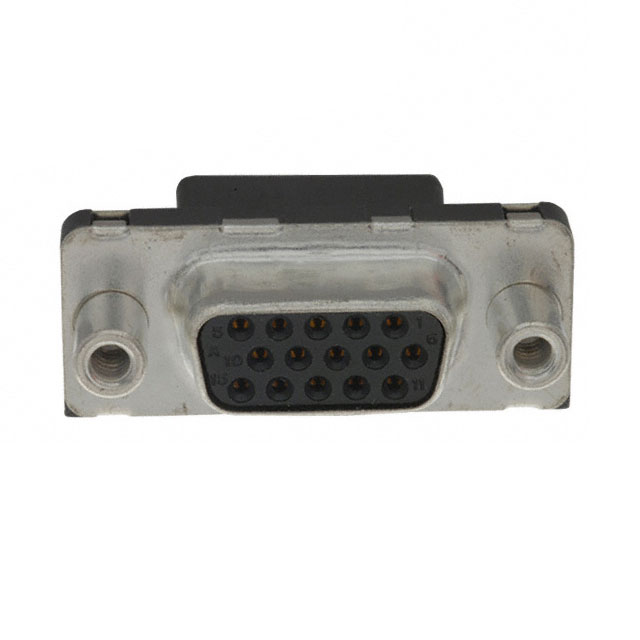

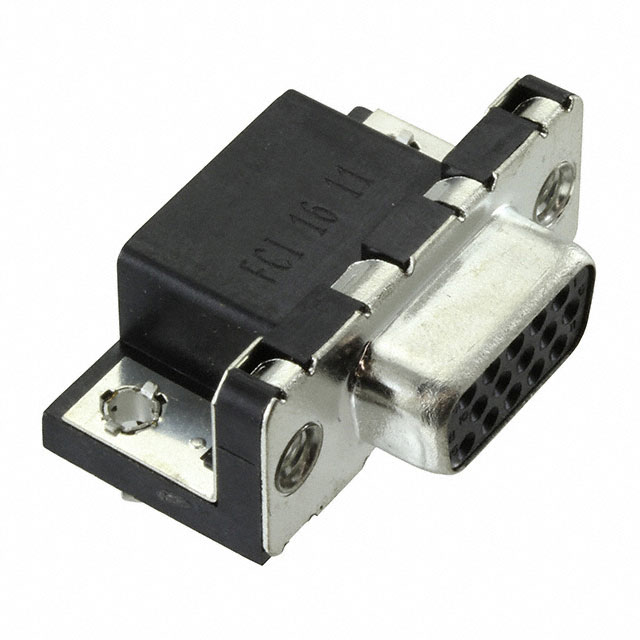

DSUB R/A STB 15 SOCKET
| Part | Voltage Rating | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Termination | Features | Number of Positions | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Connector Style | Number of Rows [custom] | Current Rating (Amps) | Contact Finish Thickness | Flange Feature | Flange Feature | Connector Type | Contact Material | Backset Spacing | Backset Spacing | Material Flammability Rating | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Flash | Housing/Shell | 4-40 | Receptacle Female Sockets | |||||||
 Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock Mounting Brackets | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Flash | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 | Nickel Plated Steel | |||
 Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Housing/Shell | 4-40 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | ||||||
 Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock Mounting Brackets | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 2.5 A | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 | Nickel Plated Steel | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock Mounting Brackets | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Flash | Housing/Shell (M3) | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 | Nickel Plated Steel | |||
Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Mounting Brackets | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Housing/Shell | 4-40 | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Flash | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | ||||||||
 Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock Mounting Brackets | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Flash | Housing/Shell | 4-40 | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 | Nickel Plated Steel | ||
Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | Board Lock Mounting Brackets | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Housing/Shell | 4-40 | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 | 30 Áin | 0.76 Ám | ||
Amphenol ICC (FCI) | 300 VDC | Black | Polyester | -55 C | 125 °C | Signal | Solder | 15 | Gold | (DE E) High Density | 1 | Right Angle Through Hole | D-Sub High Density | 3 | 3 A | Flash | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Copper Alloy | 8.89 mm | 0.35 in | UL94 V-0 |
