LMZ10503EXT Series

3-A Power module with 5.5-V maximum input voltage for military and rugged applications

Catalog

3-A Power module with 5.5-V maximum input voltage for military and rugged applications

Part	Current - Output	Voltage - Output	Frequency - Switching	Supplied Contents	Regulator Topology	Board Type	Main Purpose	Outputs and Type	Outputs and Type	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Control Features	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type

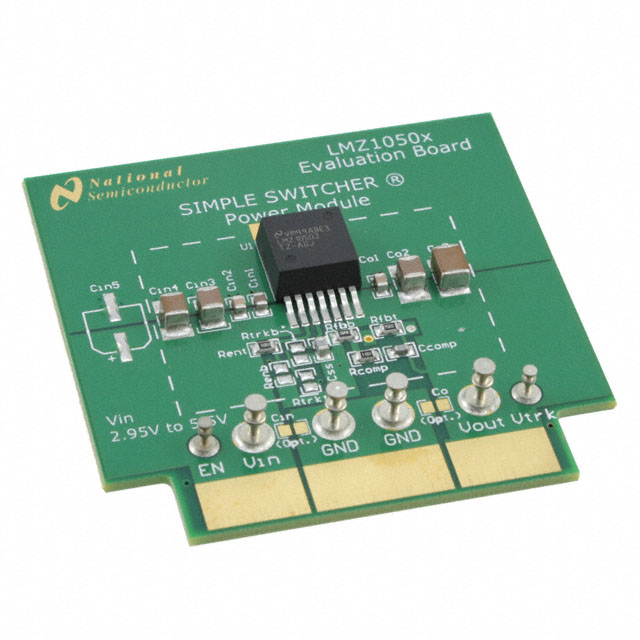

Texas Instruments LMZ10503EVAL/NOPB	3 A	2.5 V	1 MHz	Board(s)	Buck	Fully Populated	DC/DC Step Down	Non-Isolated	1
Texas Instruments LMZ10503TZE-ADJ/NOPB										3 A	TO-PMOD-7	2.95 V	0.8 V	5 V	5.5 V	TO-PMOD-7 Power Module	Surface Mount	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	Active High Enable	1	UVLO	125 °C	-40 °C	96 %	Non-Isolated PoL Module
Texas Instruments LMZ10503EXTTZ/NOPB										3 A	TO-PMOD-7	2.95 V	0.8 V	5 V	5.5 V	TO-PMOD-7 Power Module	Surface Mount	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	Active High Enable	1	UVLO	125 °C	-55 °C	96 %	Non-Isolated PoL Module
Texas Instruments LMZ10503TZ-ADJ/NOPB										3 A	TO-PMOD-7	2.95 V	0.8 V	5 V	5.5 V	TO-PMOD-7 Power Module	Surface Mount	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	Active High Enable	1	UVLO	125 °C	-40 °C	96 %	Non-Isolated PoL Module
Texas Instruments LMZ10503TZX-ADJ/NOPB										3 A	TO-PMOD-7	2.95 V	0.8 V	5 V	5.5 V	TO-PMOD-7 Power Module	Surface Mount	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	Active High Enable	1	UVLO	125 °C	-40 °C	96 %	Non-Isolated PoL Module
Texas Instruments LMZ10503EXTTZE/NOPB										3 A	TO-PMOD-7	2.95 V	0.8 V	5 V	5.5 V	TO-PMOD-7 Power Module	Surface Mount	ITE (Commercial)	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	Active High Enable	1	UVLO	125 °C	-55 °C	96 %	Non-Isolated PoL Module

Catalog

3-A Power module with 5.5-V maximum input voltage for military and rugged applications

Key Features

• Integrated Shielded InductorFlexible Start-up Sequencing Using External Soft Start, Tracking, and Precision EnableProtection Against In-Rush Currents and Faults Such as Input UVLO and Output Short-CircuitSingle Exposed Pad and Standard Pinout for Easy Mounting and ManufacturingPin-to-Pin Compatible WithLMZ10504EXT (4-A/20-W Maximum)LMZ10505EXT (5-A/25-W Maximum)Fast Transient Response for Powering FPGAs and ASICsElectrical Specifications15-W Maximum Total Output PowerUp to 3-A Output CurrentInput Voltage Range 2.95 V to 5.5 VOutput Voltage Range 0.8 V to 5 V±1.63% Feedback Voltage Accuracy Over TemperaturePerformance BenefitsOperates at High Ambient TemperaturesLow Radiated Emissions (EMI) Tested to EN55022 Class B StandardPasses 10-V/m Radiated Immunity EMI Tested to Standard EN61000 4-3Passes Vibration StandardMIL-STD-883 Method 2007.2 Condition AJESD22-B103B Condition 1Passes Drop StandardMIL-STD-883 Method 2002.3 Condition BJESD22-B110 Condition BCreate a Custom Design Using the LMZ10503 With theWEBENCH®Power DesignerIntegrated Shielded InductorFlexible Start-up Sequencing Using External Soft Start, Tracking, and Precision EnableProtection Against In-Rush Currents and Faults Such as Input UVLO and Output Short-CircuitSingle Exposed Pad and Standard Pinout for Easy Mounting and ManufacturingPin-to-Pin Compatible WithLMZ10504EXT (4-A/20-W Maximum)LMZ10505EXT (5-A/25-W Maximum)Fast Transient Response for Powering FPGAs and ASICsElectrical Specifications15-W Maximum Total Output PowerUp to 3-A Output CurrentInput Voltage Range 2.95 V to 5.5 VOutput Voltage Range 0.8 V to 5 V±1.63% Feedback Voltage Accuracy Over TemperaturePerformance BenefitsOperates at High Ambient TemperaturesLow Radiated Emissions (EMI) Tested to EN55022 Class B StandardPasses 10-V/m Radiated Immunity EMI Tested to Standard EN61000 4-3Passes Vibration StandardMIL-STD-883 Method 2007.2 Condition AJESD22-B103B Condition 1Passes Drop StandardMIL-STD-883 Method 2002.3 Condition BJESD22-B110 Condition BCreate a Custom Design Using the LMZ10503 With theWEBENCH®Power Designer

Description

The LMZ10503EXT power module is a complete, easy-to-use, DC-DC solution capable of driving up to a 3-A load with exceptional power conversion efficiency, output voltage accuracy, line and load regulation. The LMZ10503EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ10503EXT accepts an input voltage rail between 2.95 V and 5.5 V and delivers an adjustable and highly accurate output voltage as low as 0.8 V. 1-MHz fixed-frequency PWM switching provides a predictable EMI characteristic. Two external compensation components can be adjusted to set the fastest response time, while allowing the option to use ceramic or electrolytic output capacitors. Externally programmable soft-start capacitor facilitates controlled start-up. The LMZ10503EXT is a reliable and robust solution with the following features: lossless cycle-by-cycle peak current limit to protect for over current or short-circuit fault, thermal shutdown, input undervoltage lockout, and prebiased start-up. The LMZ10503EXT is also fully-enabled for WEBENCH®and Power Designer tools. The LMZ10503EXT power module is a complete, easy-to-use, DC-DC solution capable of driving up to a 3-A load with exceptional power conversion efficiency, output voltage accuracy, line and load regulation. The LMZ10503EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ10503EXT accepts an input voltage rail between 2.95 V and 5.5 V and delivers an adjustable and highly accurate output voltage as low as 0.8 V. 1-MHz fixed-frequency PWM switching provides a predictable EMI characteristic. Two external compensation components can be adjusted to set the fastest response time, while allowing the option to use ceramic or electrolytic output capacitors. Externally programmable soft-start capacitor facilitates controlled start-up. The LMZ10503EXT is a reliable and robust solution with the following features: lossless cycle-by-cycle peak current limit to protect for over current or short-circuit fault, thermal shutdown, input undervoltage lockout, and prebiased start-up. The LMZ10503EXT is also fully-enabled for WEBENCH®and Power Designer tools.
