5414 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

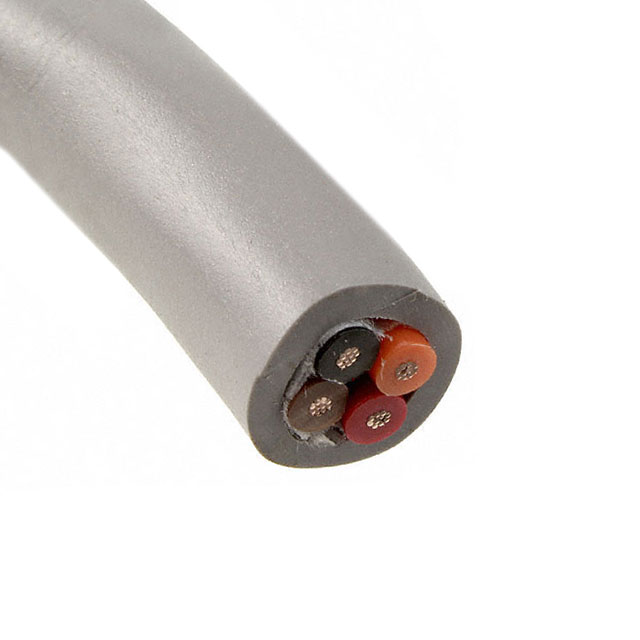

CABLE 4COND 20AWG SLATE
| Part | Features | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Ratings | Wire Gauge | Number of Conductors | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Slate | 9.58 mm | 0.377 " | 152.4 m | 500 ft | -30 ░C | 105 ░C | 1.6 mm | 0.063 in | Communication Control | ISO 10993 UL Style 2501 | 20 AWG | 4 | Copper Tinned | 600 V | 28 AWG | 7 |
ALPHA WIRE | Biological Compatibility Rip Cord | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Slate | 9.58 mm | 0.377 " | 304.8 m | 1000 ft | -30 ░C | 105 ░C | 1.6 mm | 0.063 in | Communication Control | ISO 10993 UL Style 2501 | 20 AWG | 4 | Copper Tinned | 600 V | 28 AWG | 7 |
