HS2P9M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

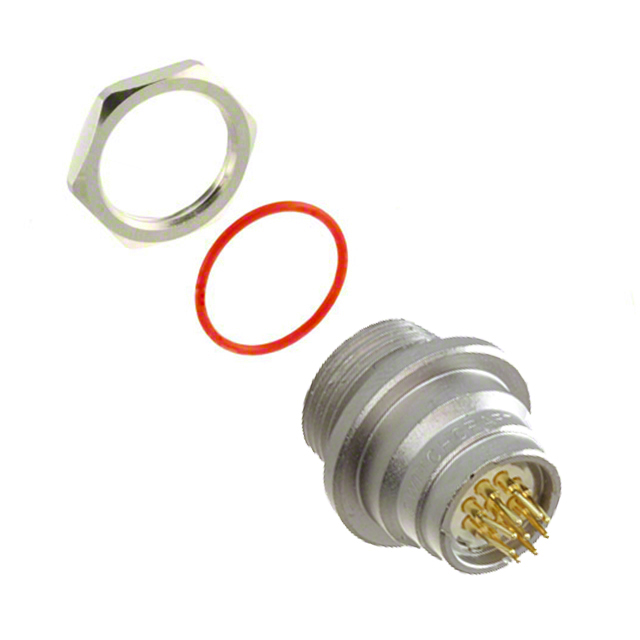

CONN RCPT MALE 9POS GOLD SOLDER
| Part | Number of Positions | Termination | Fastening Type | Orientation | Shell Material | Mounting Type | Color | Contact Material | Contact Finish - Mating | Voltage Rating | Applications | Primary Material | Connector Type | Shielding | Ingress Protection | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | 9 | Solder | Push-Pull | Keyed | Copper Alloy | Panel Mount Through Hole | Silver | Copper Alloy | Gold | 30 VAC | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | Male Pins Receptacle | Shielded | IP66 IP67 IP68 | Electroless Nickel | 135 °C | -40 °C | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut |
 Switchcraft Inc. | 9 | Solder | Push-Pull | Keyed | Copper Alloy | Panel Mount Through Hole | Silver | Copper Alloy | Gold | 30 VAC | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | Male Pins Receptacle | Shielded | IP66 IP67 IP68 | Electroless Nickel | 135 °C | -40 °C | Liquid Crystal Polymer (LCP) | Bulkhead - Front Side Nut |
