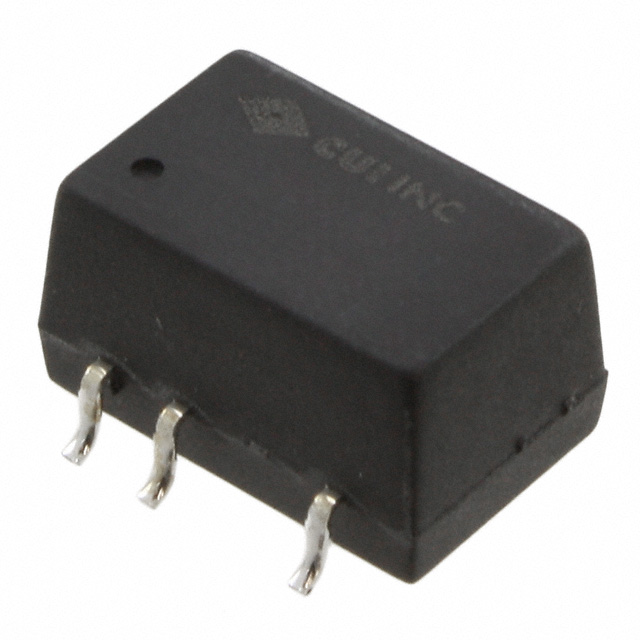

PES1-S12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 15V 1W

Part	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Approval Agency	Efficiency	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Min]
CUI Inc. PES1-S12-S15-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	EN UL	80 %	55024 55032 Class A 60950-1	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	15 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 5 Leads	13.2 V	67 mA	1
CUI Inc. PES1-S12-S5-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	EN UL	80 %	55024 55032 Class A 60950-1	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	5 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 5 Leads	13.2 V	200 mA	1
CUI Inc. PES1-S12-S15-M	SCP	ITE (Commercial)	10.8 V	3000 V	EN UL	80 %	55024 55032 Class A 60950-1	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	15 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 5 Leads	13.2 V	67 mA	1
CUI Inc. PES1-S12-D24-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	CB Scheme EN IEC UL	81 %	55024 55032 Class A 60950-1	7.3 mm	8.3 mm	0.6 "	15.2 mm	0.29 in	0.33 "	24 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 6 Leads	13.2 V		2	-24 V	21 mA
CUI Inc. PES1-S12-D5-M	SCP	ITE (Commercial)	10.8 V	3000 V	CB Scheme EN IEC	80 %	55024 55032 Class A 60950-1	7.3 mm	8.3 mm	0.6 "	15.2 mm	0.29 in	0.33 "	5 V	Surface Mount	Isolated Module	105 C	-40 °C	10-SMD Module 6 Leads	13.2 V		2	-5 V		100 mA	100 mA

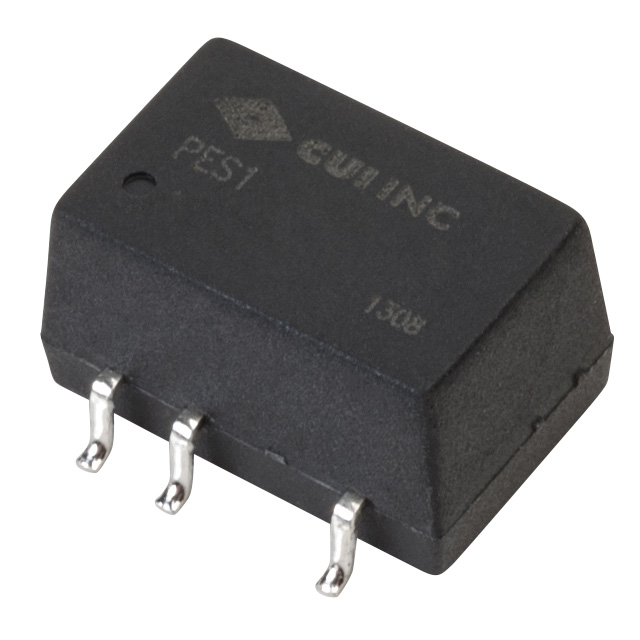

CUI Inc. PES1-S12-S3-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	EN UL		55024 55032 Class A 60950-1	0.29 "	0.33 in		12.7 mm			3.3 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 5 Leads	13.2 V	303 mA	1					7.3 mm	8.3 mm	12.7 mm
CUI Inc. PES1-S12-S12-M	SCP	ITE (Commercial)	10.8 V	3000 V	EN UL	80 %	55024 55032 Class A 60950-1	7.3 mm	8.2 mm	0.5 "	12.8 mm	0.29 in	0.32 "	12 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 5 Leads	13.2 V	84 mA	1
CUI Inc. PES1-S12-D15-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	CB Scheme EN IEC UL	81 %	55024 55032 Class A 60950-1	0.29 "	0.33 in		12.7 mm			15 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 6 Leads	13.2 V	33 mA	2	-15 V				7.3 mm	8.3 mm	12.7 mm	33 mA
CUI Inc. PES1-S12-D12-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	CB Scheme EN IEC UL	81 %	55024 55032 Class A 60950-1	0.29 "	0.33 in		12.7 mm			12 V	Surface Mount	Isolated Module	105 C	-40 °C	8-SMD Module 6 Leads	13.2 V		2	-12 V	42 mA			7.3 mm	8.3 mm	12.7 mm
CUI Inc. PES1-S12-D5-M-TR	SCP	ITE (Commercial)	10.8 V	3000 V	CB Scheme EN IEC UL	80 %	55024 55032 Class A 60950-1	7.3 mm	8.3 mm	0.6 "	15.2 mm	0.29 in	0.33 "	5 V	Surface Mount	Isolated Module	105 C	-40 °C	10-SMD Module 6 Leads	13.2 V		2	-5 V		100 mA	100 mA
