Z0805C Series

Manufacturer: KEMET

Catalog

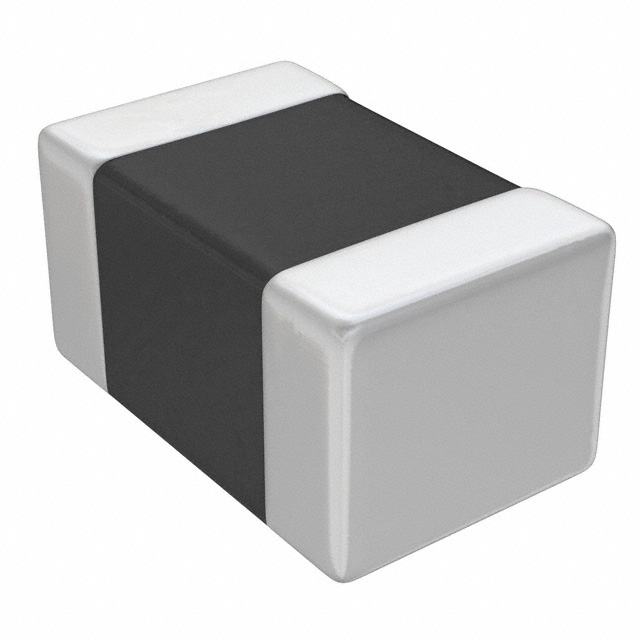

FERRITE BEAD 33 OHM 0805

Part	Height (Max) [z]	Height (Max) [z]	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Impedance @ Frequency	Package / Case	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines
KEMET Z0805C330APMST	1.05 mm	0.041 in	Power Line	2 mm	1.25 mm	0.049 "	0.079 in	33 Ohms	0805	20 mOhm	4 A	Surface Mount	-55 C	85 °C
KEMET Z0805C121BPWZT	1.05 mm	0.041 in	Power Line	2 mm	1.25 mm	0.049 "	0.079 in	120 Ohms	0805	32 mOhm	2.5 A	Surface Mount	-40 C	125 °C	1
KEMET Z0805C330ASMST	1.05 mm	0.041 in	Signal Line	2 mm	1.25 mm	0.049 "	0.079 in	33 Ohms	0805	50 mOhm	1.2 A	Surface Mount	-55 C	125 °C	1
KEMET Z0805C601BSMST	1.05 mm	0.041 in	Signal Line	2 mm	1.25 mm	0.049 "	0.079 in	600 Ohms	0805	250 mOhm	500 mA	Surface Mount	-55 C	125 °C	1
KEMET Z0805C241CSMST	1.05 mm	0.041 in	Signal Line	2 mm	1.25 mm	0.049 "	0.079 in	240 Ohms	0805	350 mOhm	300 mA	Surface Mount	-55 C	125 °C	1
KEMET Z0805C750ASMST	1.05 mm	0.041 in	Signal Line	2 mm	1.25 mm	0.049 "	0.079 in	75 Ohms	0805	100 mOhm	1 A	Surface Mount	-55 C	125 °C	1
KEMET Z0805C601ASMST	1.05 mm	0.041 in	Signal Line	2 mm	1.25 mm	0.049 "	0.079 in	600 Ohms	0805	300 mOhm	500 mA	Surface Mount	-55 C	125 °C	1
KEMET Z0805C221BPWZT	1.05 mm	0.041 in	Power Line	2 mm	1.25 mm	0.049 "	0.079 in	220 Ohms	0805	60 mOhm	2 A	Surface Mount	-40 C	125 °C	1
KEMET Z0805C241ASMST	1.05 mm	0.041 in	Signal Line	2 mm	1.25 mm	0.049 "	0.079 in	240 Ohms	0805	200 mOhm	600 mA	Surface Mount	-55 C	125 °C	1
