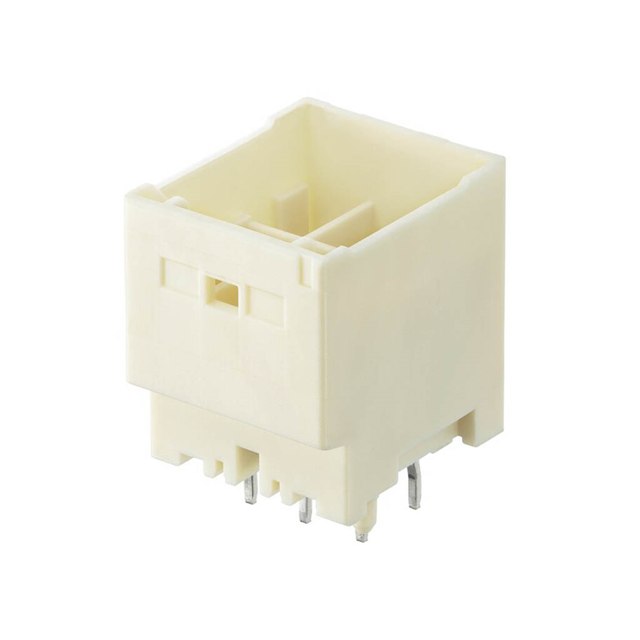

CP-3.3 Header, 3.30mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Glow-Wire Capable, 6 Circuits, with Potting Capability, Yellow
CP-3.3 Header, 3.30mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Glow-Wire Capable, 6 Circuits, with Potting Capability, Yellow
CP-3.3 Header, 3.30mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Glow-Wire Capable, 6 Circuits, with Potting Capability, Yellow
| Part | Contact Type | Fastening Type | Mounting Type | Contact Shape | Shrouding | Connector Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Features | Current Rating (Amps) | Insulation Color | Voltage Rating | Insulation Material | Insulation Height | Insulation Height | Number of Positions Loaded | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Length - Post | Contact Length - Post | Termination | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Male Pin | Latch Holder | Through Hole | Square | Shrouded - 4 Wall | Header | Copper Alloy | 4.14 mm | 0.163 in | Tin | Board Guide Glow Wire Compliant | Varies by Wire Gauge | Natural | 500 VAC | Glass Filled Nylon Polyamide (PA) | 0.549 in | 13.94 mm | All | Board to Cable/Wire | 1 µm | 39.4 µin | 2 | 3.35 mm | 0.132 in | Kinked Pin Solder | UL94 V-0 | -40 °C | 105 ░C | 2 | 1 çm | 39.4 çin |
