203564 Series

Manufacturer: Molex

Catalog

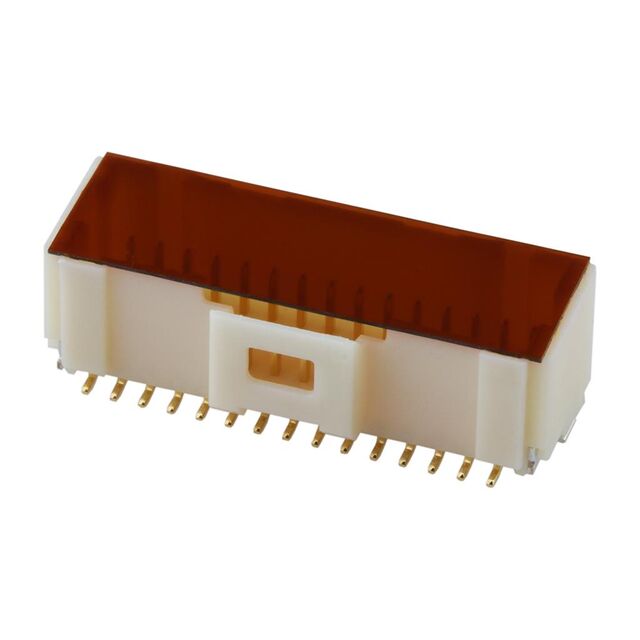

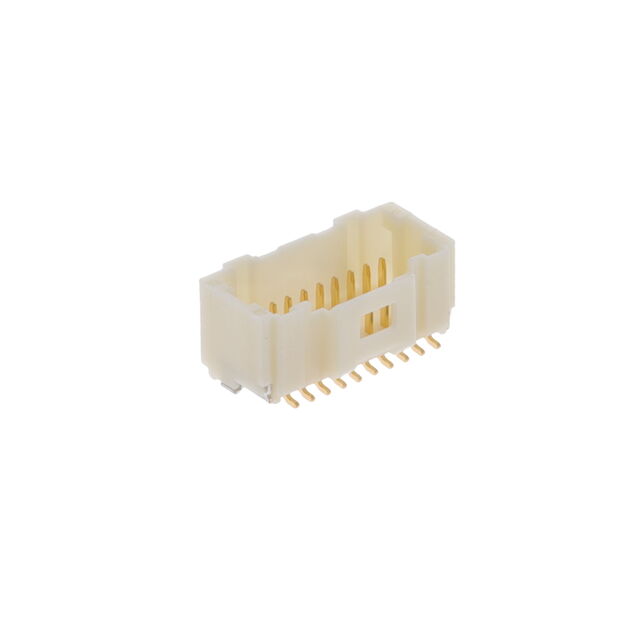

1.00MM PITCH, PICO-CLASP PCB HEADER, DUAL ROW, VERTICAL, SURFACE MOUNT, 0.38ΜM GOLD PLATED, INNER POSITIVE LOCK, 40 CIRCUITS

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Connector Type	Number of Positions	Termination	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Shape	Style	Contact Type	Pitch - Mating	Pitch - Mating	Shrouding	Material Flammability Rating	Voltage Rating	Insulation Material	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Features	Insulation Color	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating
Molex 2035644027	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	40	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035645017	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	50	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Pick and Place Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035645027	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	50	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035644017	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	40	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Pick and Place Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035642017	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	20	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Pick and Place Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035642027	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	20	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035643017	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	30	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Pick and Place Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
Molex 2035643027	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Header	30	Solder	2	-40 C	105 ░C	Friction Lock	Rectangular	Board to Cable/Wire	Male Pin	1 mm	0.039 in	Shrouded - 4 Wall	UL94 V-0	50 V	Nylon Polyamide (PA)	All	0.213 "	5.4 mm	Gold	Solder Retention	Natural	Gold	Phosphor Bronze	0.38 µm	15 µin	Surface Mount	Varies by Wire Gauge	0.105 in	2.66 mm
