745-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

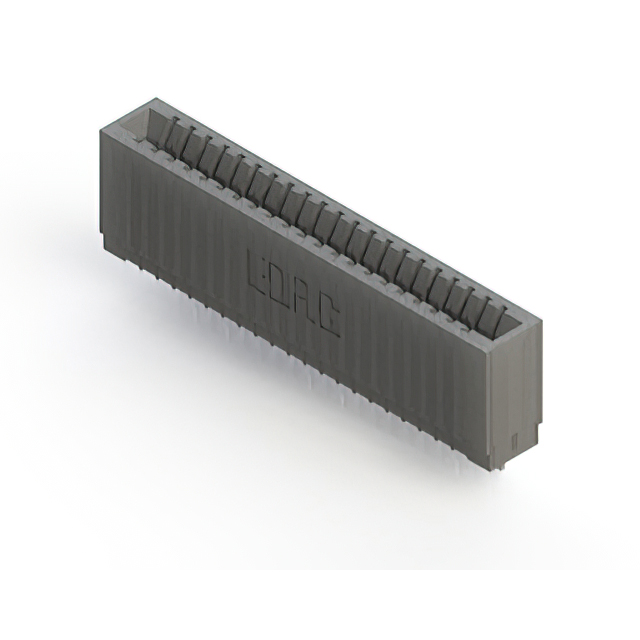

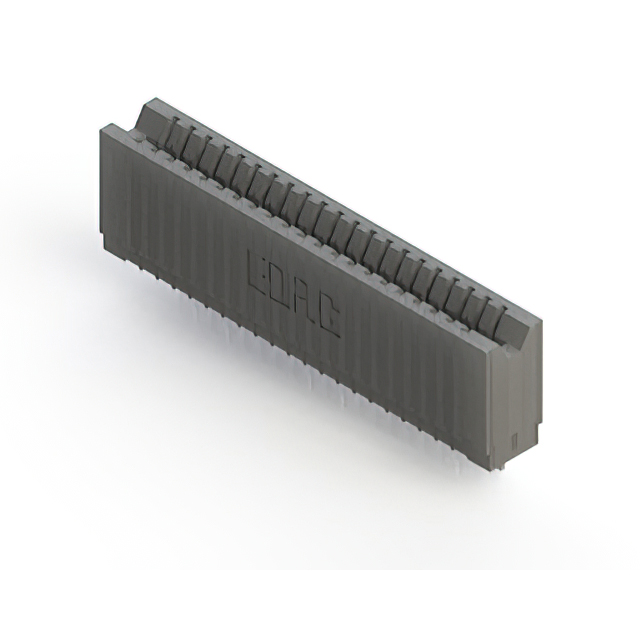

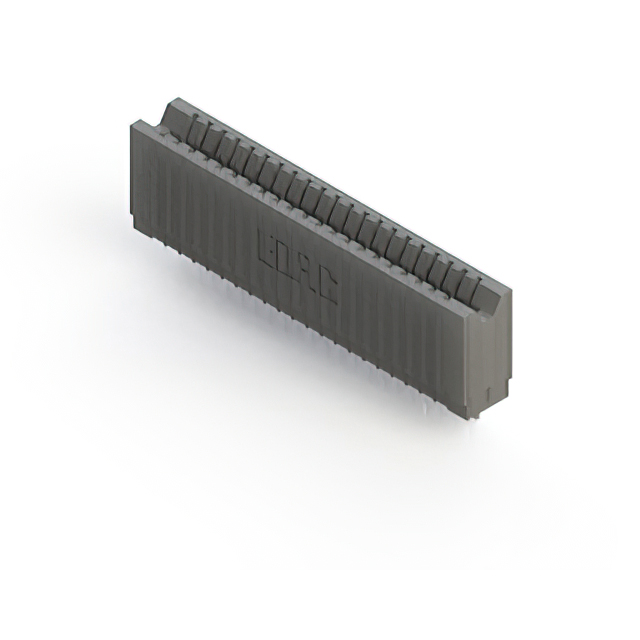

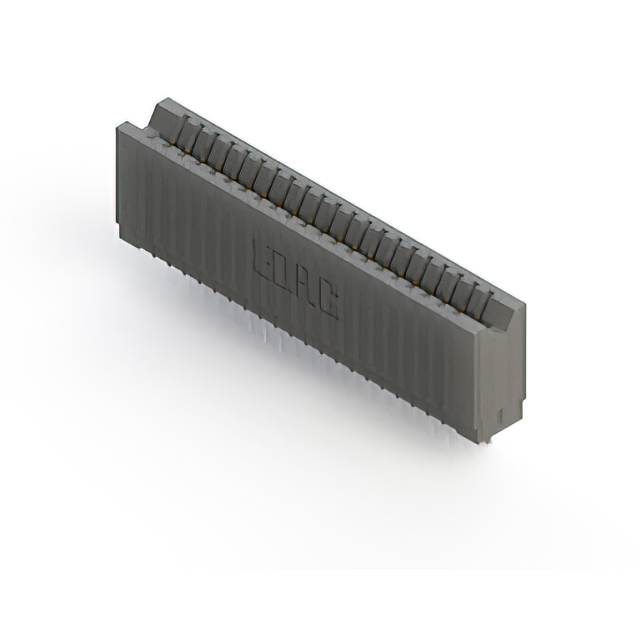

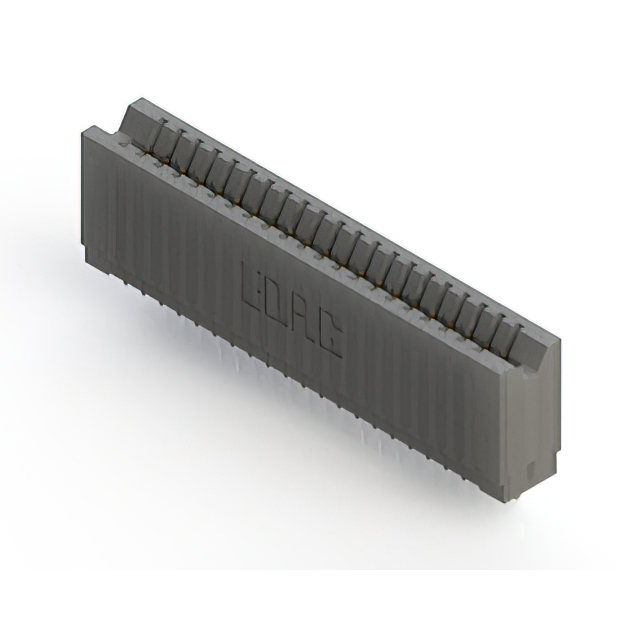

CONN EDGE SINGLE FML 21POS 0.100
| Part | Material - Insulation | Termination Rows | Contact Type | Contact Material | Color | Card Type | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Rows | Number of Positions/Bay/Row [custom] | Mounting Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | Copper Alloy | Black | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | -40 C | 105 ░C | 21 | 1 | 21 | Through Hole | Female | 30 Áin | 0.76 Ám | Press-Fit | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | Copper Alloy | Black | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | -40 C | 105 ░C | 21 | 1 | 21 | Through Hole | Female | 30 Áin | 0.76 Ám | Press-Fit | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | Copper Alloy | Black | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | -40 C | 105 ░C | 21 | 1 | 21 | Through Hole | Female | 30 Áin | 0.76 Ám | Press-Fit | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | Copper Alloy | Black | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | -40 C | 105 ░C | 21 | 1 | 21 | Through Hole | Female | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Cantilever | Copper Alloy | Black | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | -40 C | 105 ░C | 21 | 1 | 21 | Through Hole | Female | 30 Áin | 0.76 Ám | Press-Fit | 0.1 " | 2.54 mm |
