2834088 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

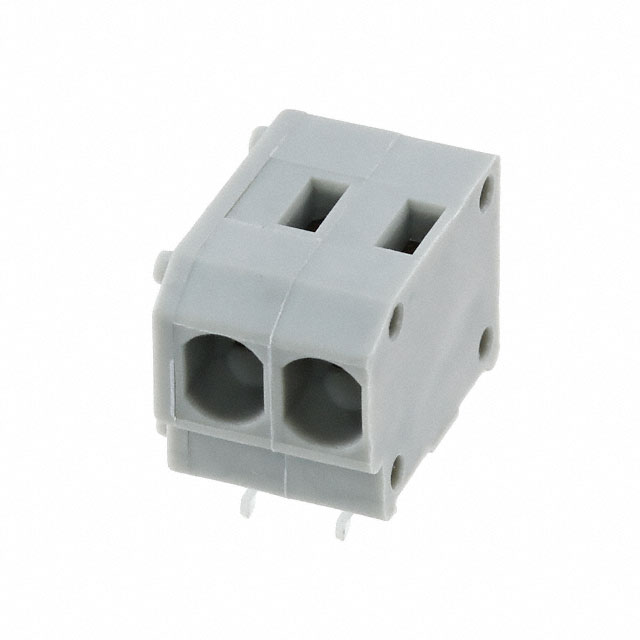

TERM BLK 2P SIDE ENT 3.81MM PCB
| Part | Wire Termination | Mounting Type | Positions Per Level | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Voltage | Features | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] | Current | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Push-In Spring Screwless - Leg Spring | Kinked Pin Through Hole | 2 | 0.15 in | 3.81 mm | 16 AWG | 20 AWG | 300 V | Interlocking (Side) | 1 | -40 °C | 105 ░C | 8 A | Horizontal with Board |
