172142 Series

Catalog

EIS LOW PROFILE HSG 12P NATURAL

Part	Note	Number of Rows	Contact Termination	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Contact Type	Pitch	Pitch	Number of Positions	Color	Fastening Type
TE Connectivity AMP Connectors 1-172142-2	Contacts Not Included	1	Crimp	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	Receptacle	Free Hanging (In-Line)	Female Socket	2.5 mm	0.098 in	12	Natural

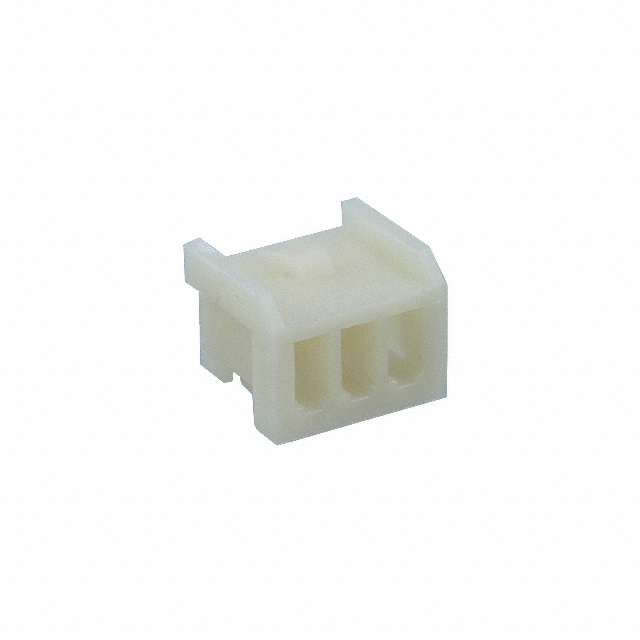

TE Connectivity AMP Connectors 172142-3	Contacts Not Included	1	Crimp	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	Receptacle	Free Hanging (In-Line)	Female Socket	2.5 mm	0.098 in		Natural	Push-Pull
TE Connectivity AMP Connectors 172142-9	Contacts Not Included	1	Crimp	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	Receptacle	Free Hanging (In-Line)	Female Socket	2.5 mm	0.098 in	9	Natural

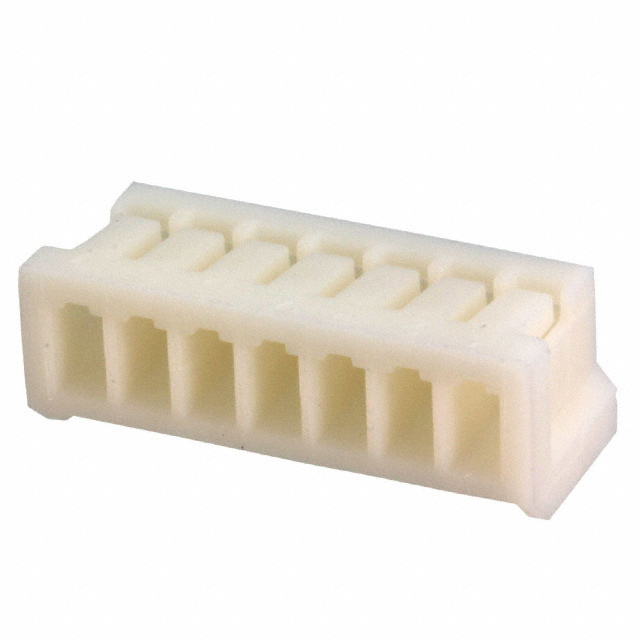

TE Connectivity AMP Connectors 172142-7	Contacts Not Included	1	Crimp	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	Receptacle	Free Hanging (In-Line)	Female Socket	2.5 mm	0.098 in	7	Natural

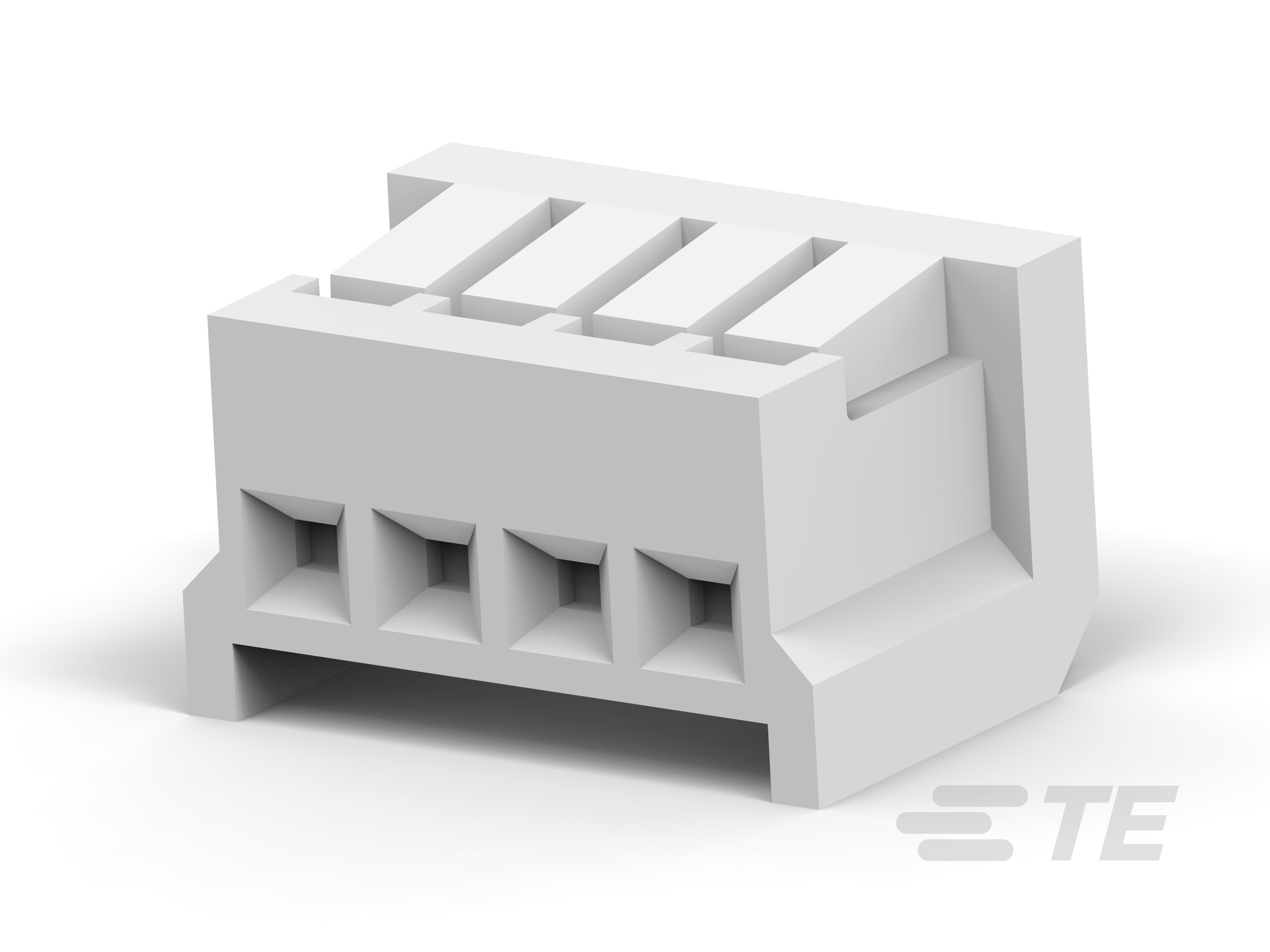

TE Connectivity AMP Connectors 172142-4	Contacts Not Included	1	Crimp	Nylon 6/6 Polyamide (PA66)	95 °C	-20 ░C	Receptacle	Free Hanging (In-Line)	Female Socket	2.5 mm	0.098 in	4	Natural
