29503F Series
Manufacturer: Belden Inc.
Beta
⌘K

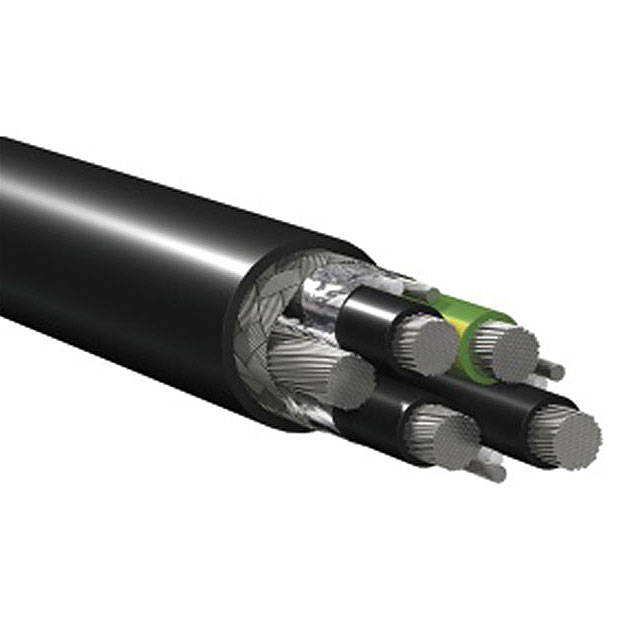

CABLE 4COND 10AWG BLACK SHLD
| Part | Shield Material | Spool Size [x] | Spool Size [x] | Shield Coverage | Wire Gauge | Length | Conductor Insulation | Conductor Insulation | Conductor Material | Features | Usage | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 304.8 m | 1000 ft | 85 % 100 % | 10 AWG | Enter Number of Meters in Order Quantity | Polyolefin | PO | Copper Tinned | Drain Wire Oil Resistant UV Resistant | Motor Supply Variable Frequency Drive (VFD) | Thermoplastic Elastomer (TPE) | Black | 1.854 mm | 0.073 in | Braid Foil | 304.8 m | 1000 ft | 0.716 " | 18.19 mm | 90 °C | -40 C | Multi-Conductor | 4 | 7 | 34 | 37 |
