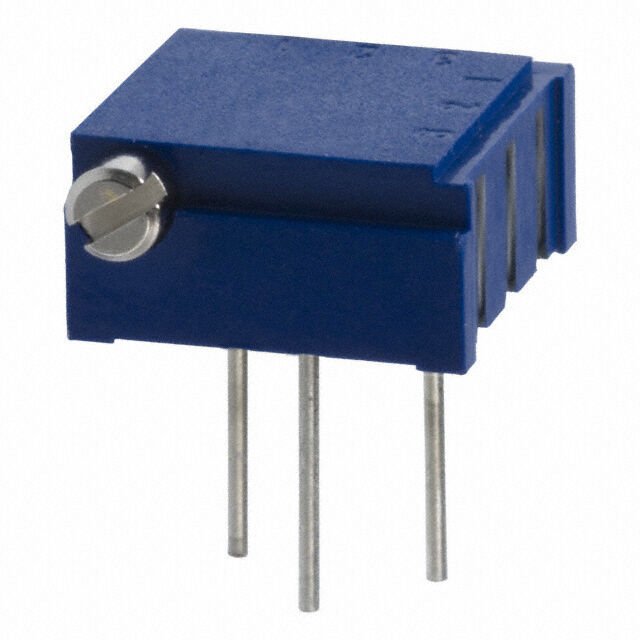

CT94EP Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 200KOHM 0.5W PC PIN SIDE

Part	Resistive Material	Adjustment Type	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Temperature Coefficient	Termination Style	Number of Turns	Mounting Type	Tolerance
Nidec Components Corporation CT-94EP204	Cermet	Side Adjustment	0.5 W	0.5 W	200000 Ohms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP205	Cermet	Side Adjustment	0.5 W	0.5 W	2 MOhms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP500	Cermet	Side Adjustment	0.5 W	0.5 W	50 Ohms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP203	Cermet	Side Adjustment	0.5 W	0.5 W	20 kOhms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP101	Cermet	Side Adjustment	0.5 W	0.5 W	100 Ohms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP202	Cermet	Side Adjustment	0.5 W	0.5 W	2 kOhms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP501	Cermet	Side Adjustment	0.5 W	0.5 W	0.5 kOhms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP200	Cermet	Side Adjustment	0.5 W	0.5 W	20 Ohms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	250 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP502	Cermet	Side Adjustment	0.5 W	0.5 W	5 kOhms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	100 ppm/°C	PC Pins	18	Through Hole	10 %
Nidec Components Corporation CT-94EP100	Cermet	Side Adjustment	0.5 W	0.5 W	10 Ohms	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	250 ppm/°C	PC Pins	18	Through Hole	10 %
