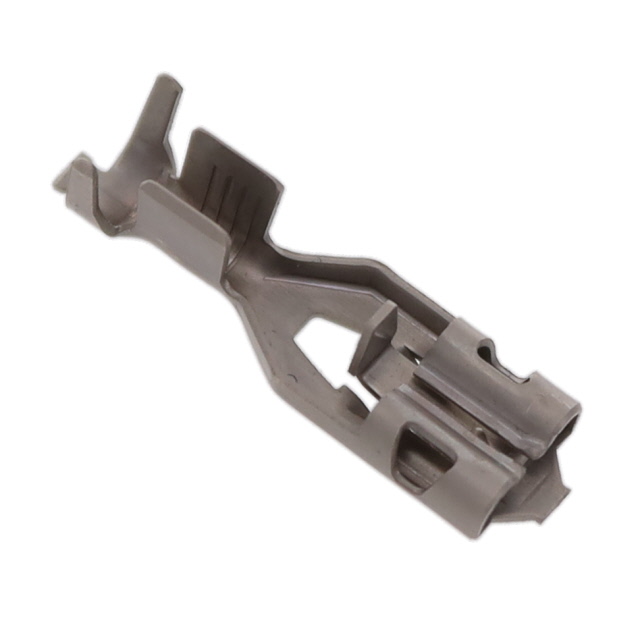

2825084 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
HIGH TEMPERATURE 250 POSITIVE LO
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Tab Length | Tab Length | Gender | Contact Material | Terminal Type | Tab Width | Tab Width | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Tab Thickness | Tab Thickness | Mounting Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 AWG | 10 AWG | 0.255 in | 6.48 mm | Female | Steel | Standard | 6.35 mm | 0.25 in | Nickel | 0.914 in | 23.22 mm | Crimp | 0.15 " | 5.08 mm | 3.81 mm | 0.2 " | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Non-Insulated |
